Control Valve Body: Removal

NOTE: The control valve body is a non-disassembly part.
  1. Disconnect the ground terminal from battery sensor, Ref. to GROUND TERMINAL REMOVAL OR INSTALLATION .
  2. Remove the clip from the air intake boot, and loosen the clamp.
    G13223823Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the air intake boot, and place it aside so that it does not interfere with the work.
    CAUTION: Be careful not to pull out the PCV hose.
    G13223824Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the TCM. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>TRANSMISSION CONTROL MODULE (TCM)>REMOVAL .

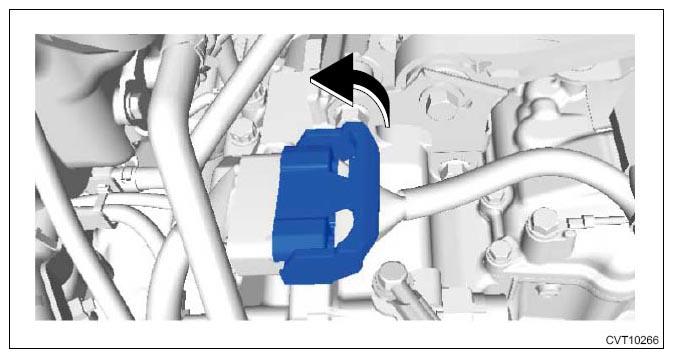

  5. Disconnect the transmission harness connector.
    G11255510Courtesy of SUBARU OF AMERICA, INC.

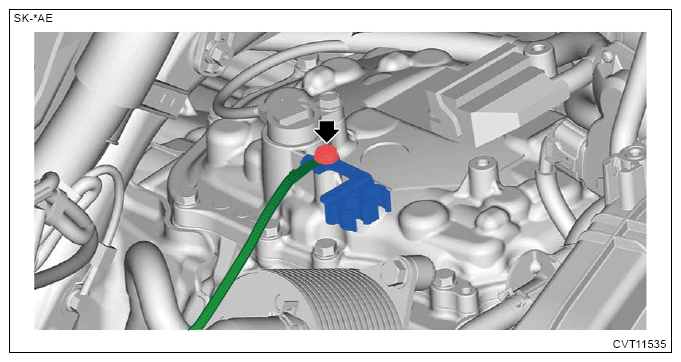

  6. Remove the ground cord and the air breather hose stay.
    G13225733Courtesy of SUBARU OF AMERICA, INC.

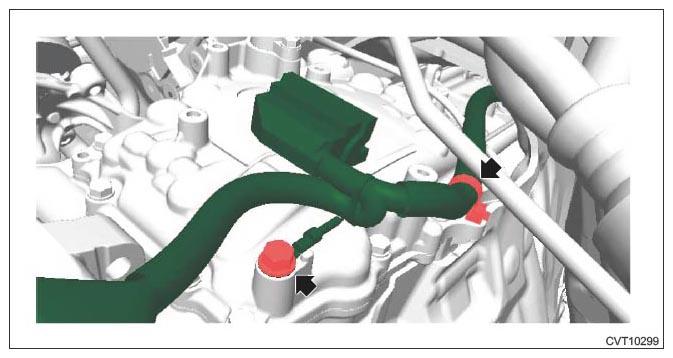

  7. Remove the clip and remove the ground terminal.
    G11255661Courtesy of SUBARU OF AMERICA, INC.
  8. Clean the valve cover vicinity.
    CAUTION: Make sure that foreign matter does not get into the throttle body and connector terminals.
    NOTE: This is necessary to prevent foreign matter from getting into the transmission.
  9. Remove the throttle body, and place it aside so that it does not interfere with the work. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>THROTTLE BODY>REMOVAL .
    NOTE: Do not disconnect the preheater hose.

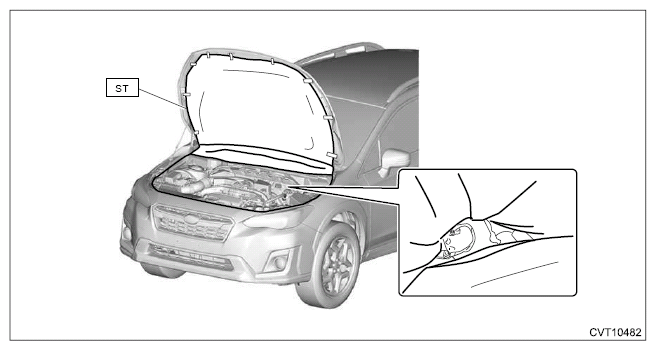

  10. Attach the ST.
    NOTE: The ST is included in the control valve body for repairs.

    Preparation tool:

    ST: SHEET SPECIAL TOOL (18761AA010)

    G12393236Courtesy of SUBARU OF AMERICA, INC.

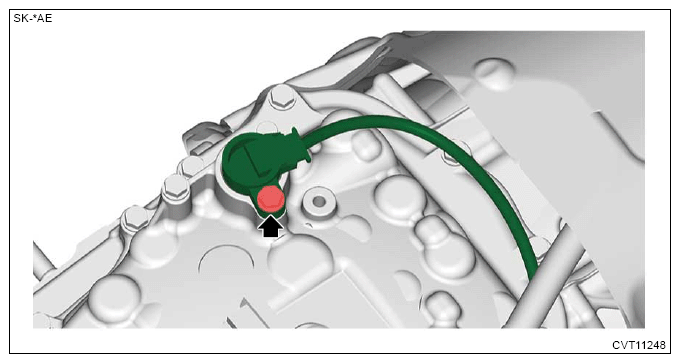

  11. Remove the bolt securing the transmission harness.
    G13225736Courtesy of SUBARU OF AMERICA, INC.

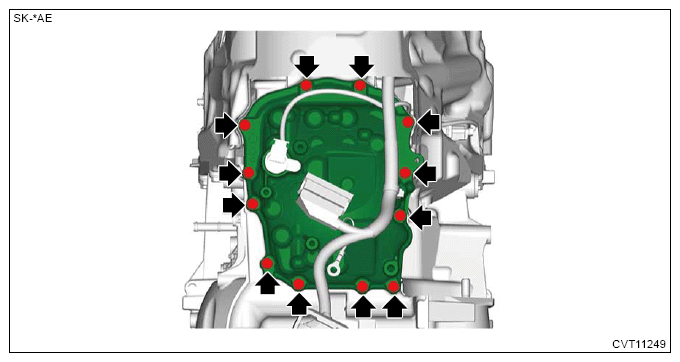

  12. Remove the valve cover.
    G13225737Courtesy of SUBARU OF AMERICA, INC.

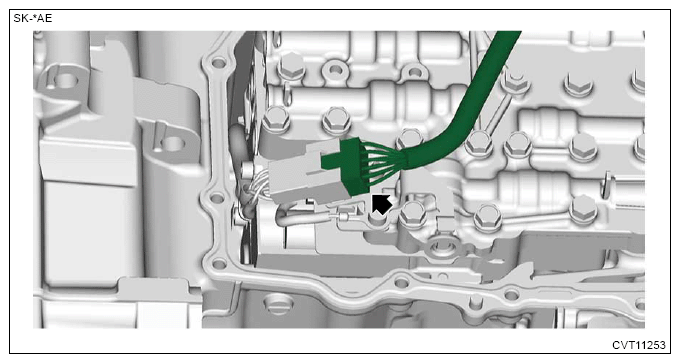

  13. Disconnect the connector from the control valve body, and remove the transmission harness from the valve cover.
    G13225738Courtesy of SUBARU OF AMERICA, INC.

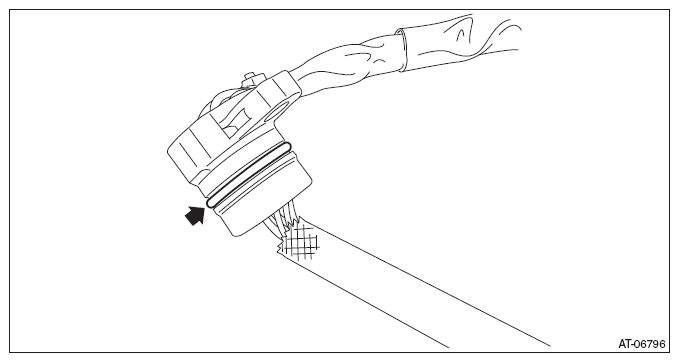

  14. Remove the O-rings.
    G08317849Courtesy of SUBARU OF AMERICA, INC.

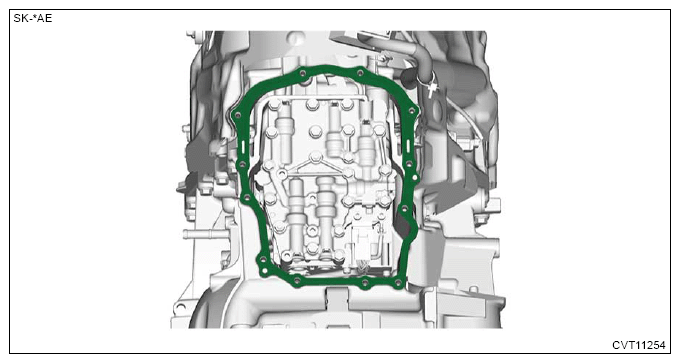

  15. Remove the gasket.
    G13225740Courtesy of SUBARU OF AMERICA, INC.

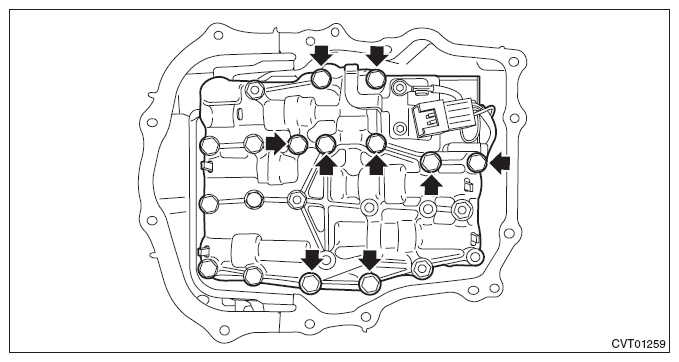

  16. Remove the control valve body.
    CAUTION: Do not remove any bolts other than specified in the figure.
    G10218618Courtesy of SUBARU OF AMERICA, INC.
  17. Remove the O-rings.
    G13225742Courtesy of SUBARU OF AMERICA, INC.
  18. Remove the liquid gasket from the mating surface of valve cover and transmission body.
