Converter Case: Assembly

Install the stud bolt.
Tightening torque:

18 N.m (2.5 kgf.m, 18.4 ft.lb)

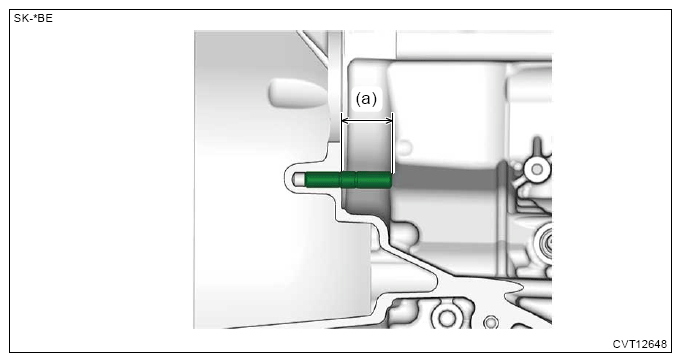

NOTE: After tightening, check that the protruding portion (a) is within the standard.

Specification:

25.0 - 28.7 mm (0.98 - 1.13 in)

Courtesy of SUBARU OF AMERICA, INC.
Install the drain plug.
Tightening torque:

70 N.m (7.1 kgf.m, 51.6 ft.lb)

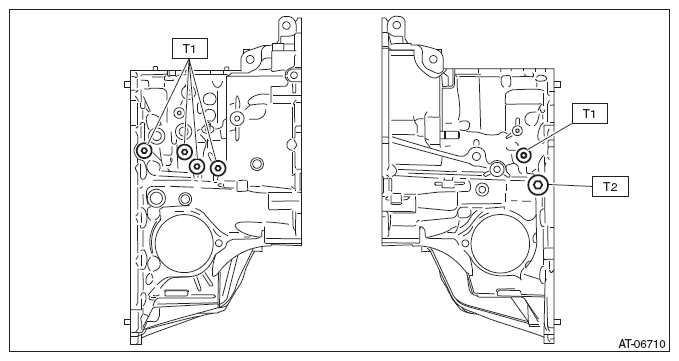

Temporarily attach the filler plug and overflow plug.
Install the plugs with new O-rings.
NOTE: Apply CVTF to the O-rings.

Tightening torque:

T1: 22 N.m (2.2 kgf.m, 16.2 ft.lb)

T2: 22.5 N.m (2.3 kgf.m, 16.6 ft.lb)

Courtesy of SUBARU OF AMERICA, INC.
