Converter Case: Disassembly

  1. Remove the filler plug, drain plug and overflow plug. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>Differential Gear Oil>REPLACEMENT .

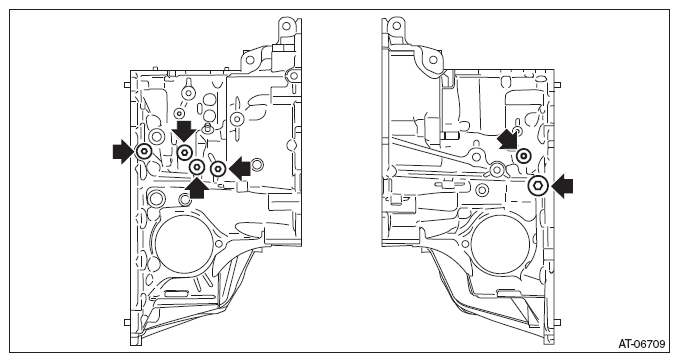

  2. Remove all plugs.
    G08318185Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the stud bolt.
    G13592394Courtesy of SUBARU OF AMERICA, INC.
