Drive Pinion: Disassembly

Flatten the tab of the lock nut.
Using ST1, ST2 and ST3, fix at the spline portion of drive pinion to remove the lock nut.
Preparation tool:

ST1: ADAPTER (499787500)

ST2: WRENCH (499787700)

ST3: HOLDER (498937110)

Courtesy of SUBARU OF AMERICA, INC.
Remove the drive pinion.

Courtesy of SUBARU OF AMERICA, INC.

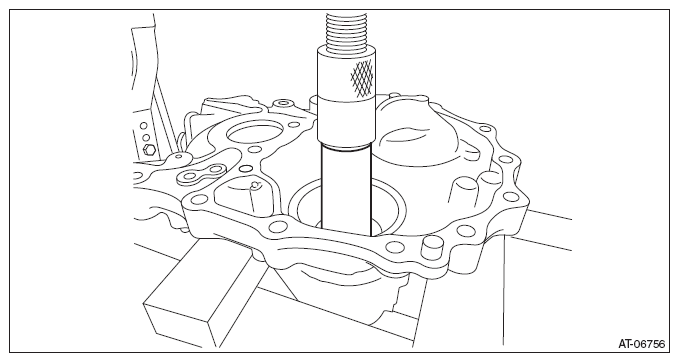

Using the round bar with diameter of 36 mm (1.42 in) or 37 mm (1.46 in) and a press, remove the taper roller bearing (rear) inner race and plug.

Courtesy of SUBARU OF AMERICA, INC.
Remove the drive pinion washer.

Courtesy of SUBARU OF AMERICA, INC.
Remove the drive pinion spacer.

Courtesy of SUBARU OF AMERICA, INC.
Remove the O-rings.

Courtesy of SUBARU OF AMERICA, INC.

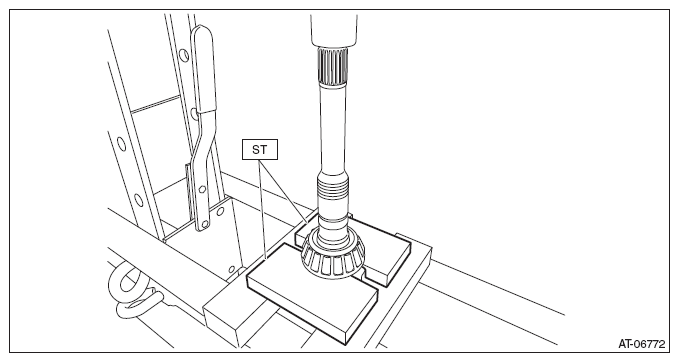

Using the ST and a press, remove the taper roller bearing (front) inner race and the drive pinion shim.
Preparation tool:

ST: REMOVER (498515500)

Courtesy of SUBARU OF AMERICA, INC.

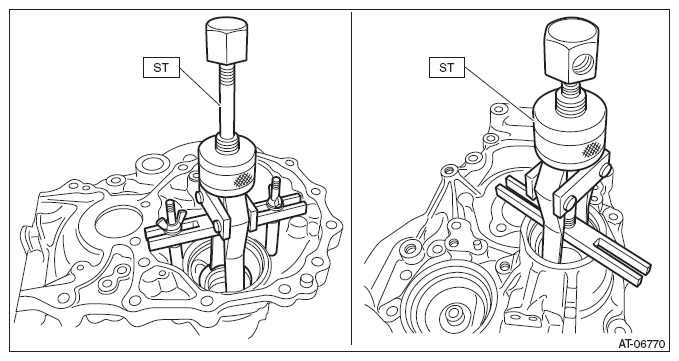

Using the ST, remove the taper roller bearing (front) outer race and the taper roller bearing (rear) outer race.
Preparation tool:

ST: PULLER ASSY (398527700)

Courtesy of SUBARU OF AMERICA, INC.

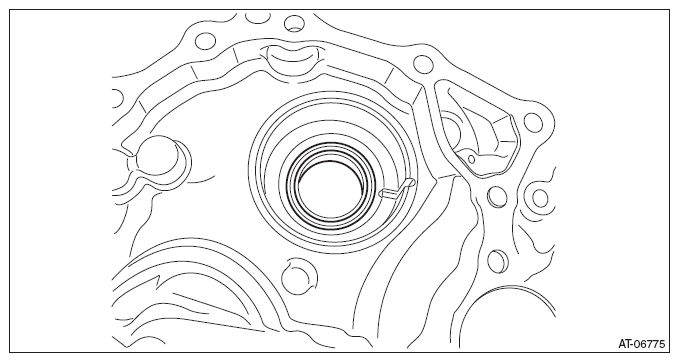

Remove the oil seal from the front side and the rear side.
CAUTION: Do not damage the fitting surface of oil seal.

Courtesy of SUBARU OF AMERICA, INC.

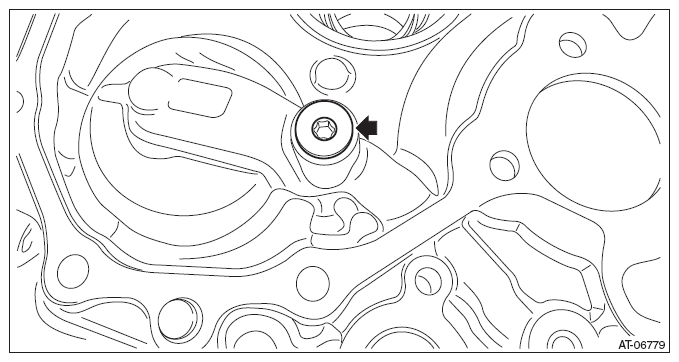

Remove the plug from drive pinion retainer.

Courtesy of SUBARU OF AMERICA, INC.
