Electric Fluid Pump: Installation

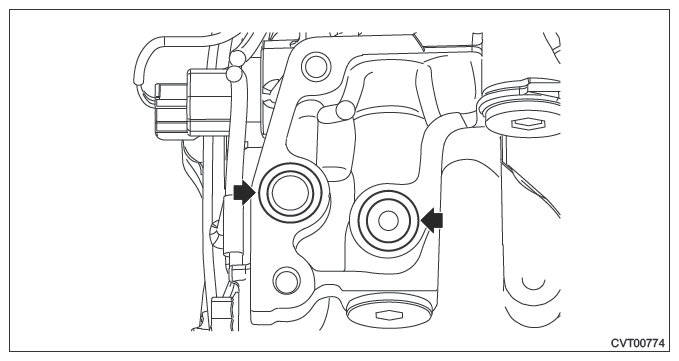

Install a new O-ring.
NOTE: Apply CVTF to the O-rings.

Courtesy of SUBARU OF AMERICA, INC.
Install the electric oil pump, and connect the connector.
Tightening torque:

22 N.m (2.2 kgf-m, 16.2 ft-lb)
Install the front exhaust pipe, Ref. to EXHAUST (H4DO)>FRONT EXHAUST PIPE>INSTALLATION .
Connect the ground terminal to battery sensor. Ref. to GROUND TERMINAL REMOVAL OR INSTALLATION .
Fill with CVTF. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>CVTF>REPLACEMENT .
