Extension Case: Assembly

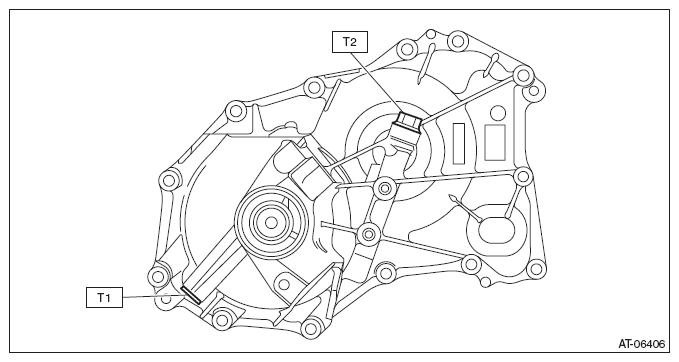

Install all plugs using new O-rings or gaskets.
NOTE: Apply CVTF to the O-rings.

Tightening torque:

T1: 22 N.m (2.2 kgf.m, 16.2 ft.lb)

T2: 35 N.m (3.6 kgf.m, 25.8 ft.b)

Courtesy of SUBARU OF AMERICA, INC.
Install the dust cover into extension case.
Install a new extension case oil seal to extension case. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>Extension Case Oil Seal>REPLACEMENT .
