Extension Case: Removal

  1. Remove the transmission body. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>Transmission Assembly>REMOVAL .
  2. Remove the electric oil pump. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>Electric Fluid Pump>REMOVAL

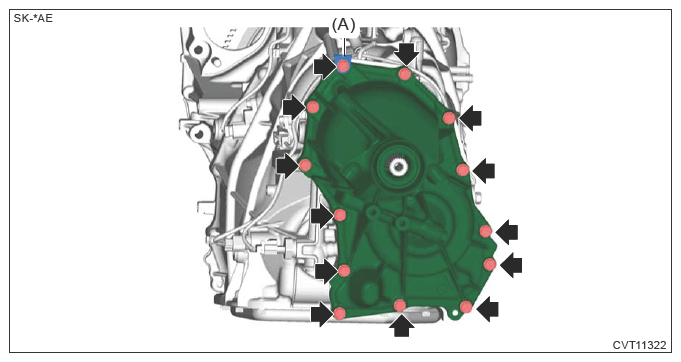

  3. Remove the extension case and transmission hanger (A).
    G13225801Courtesy of SUBARU OF AMERICA, INC.

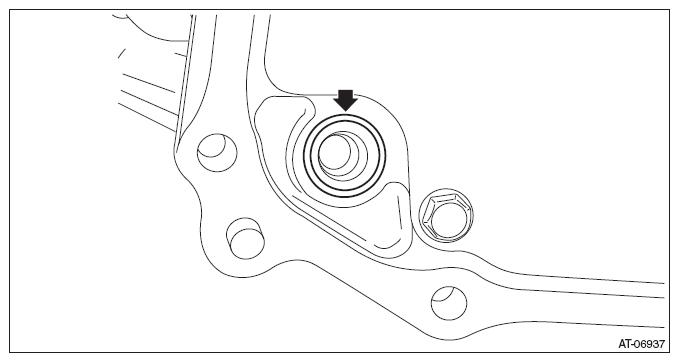

  4. Remove the O-ring from the transmission case.
    G08317893Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the liquid gasket from the extension case and the transmission case.
