Forward Clutch: Adjustment

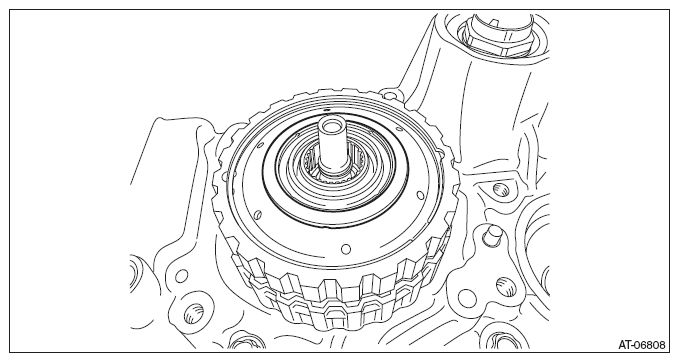

Install the thrust bearing to the internal gear.
NOTE: Make sure to install in the right direction.

Courtesy of SUBARU OF AMERICA, INC.

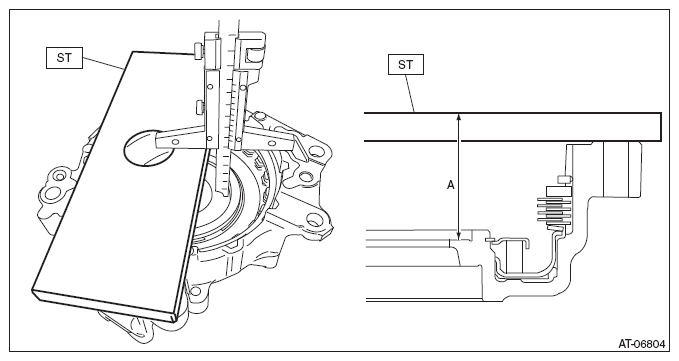

Measure depth "A" from the ST upper face to the washer mounting surface.
Preparation tool:

ST: GAUGE (499575600)

Courtesy of SUBARU OF AMERICA, INC.

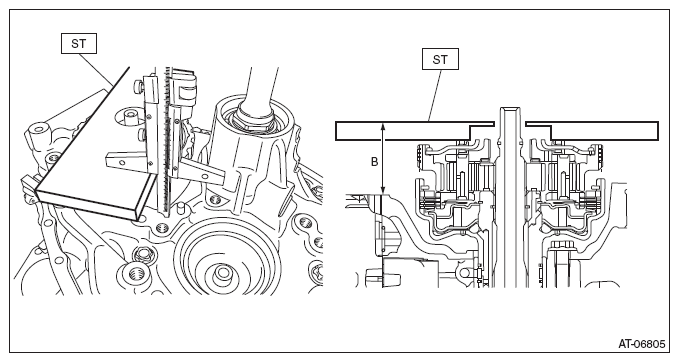

Measure the height "B" from the ST upper face to the mating surface of the drive pinion retainer.
Preparation tool:

ST: GAUGE (499575600)

Courtesy of SUBARU OF AMERICA, INC.
Calculate the following formula.
T mm = A - B - (0.35 - 0.70)

[T in = A - B - (0.014 - 0.028)]

T: Washer thickness

A: Depth from the ST upper face to the washer mounting surface

B: Height from ST upper face to the drive pinion retainer mating surface

0.35 - 0.70 mm (0.014 - 0.028 in): Clearance
