Differential Case

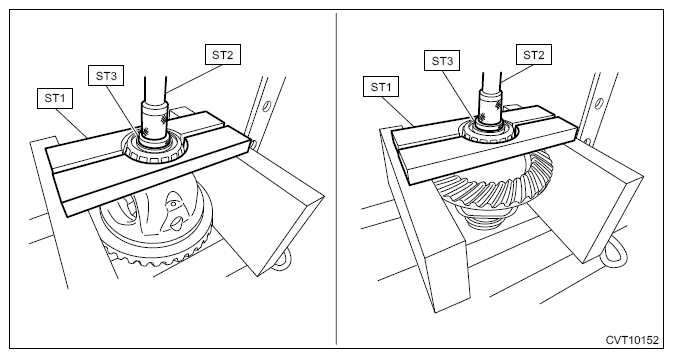

Remove the side bearing inner race using ST1, ST2, ST3 and a press.
Preparation tool:

ST1: REMOVER (498077000)

ST2: REMOVER (899864100)

ST3: SEAT (398497701)

Courtesy of SUBARU OF AMERICA, INC.

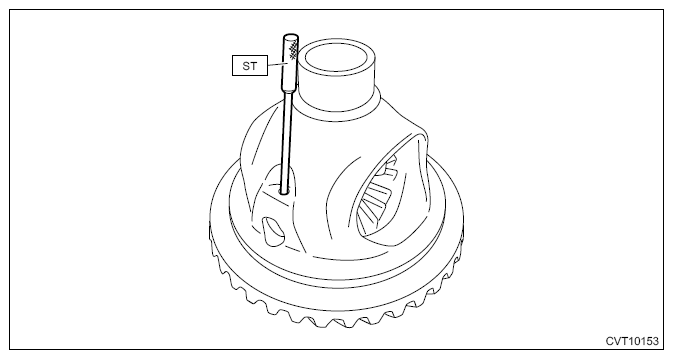

Using the ST, remove the spring pin.
Preparation tool:

ST: STRAIGHT PIN REMOVER (899904100)

Courtesy of SUBARU OF AMERICA, INC.

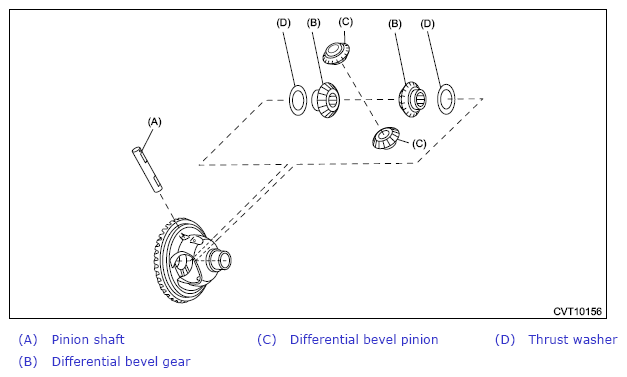

Remove the pinion shaft, and remove the differential bevel pinion, differential bevel gear and thrust washer.

Courtesy of SUBARU OF AMERICA, INC.
