Front Differential Gear

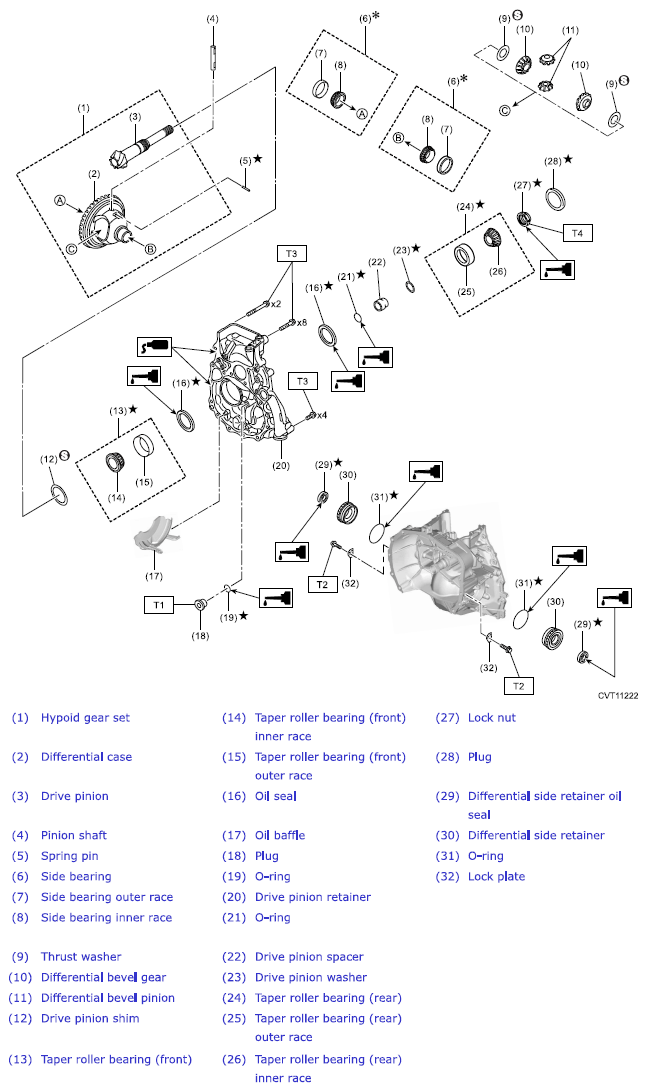

Fig 1: Exploded View Of Front Differential Gear Components

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 22 {2.2, 16.2)

T2: 25 (2.5, 18.4)

T3: 43 (4.4, 31.7)

T4:  Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>Drive Pinion>ASSEMBLY .

*: If the side bearing inner race is removed from the differential case, replace the side bearing with a new part.
