Transmission Control Device

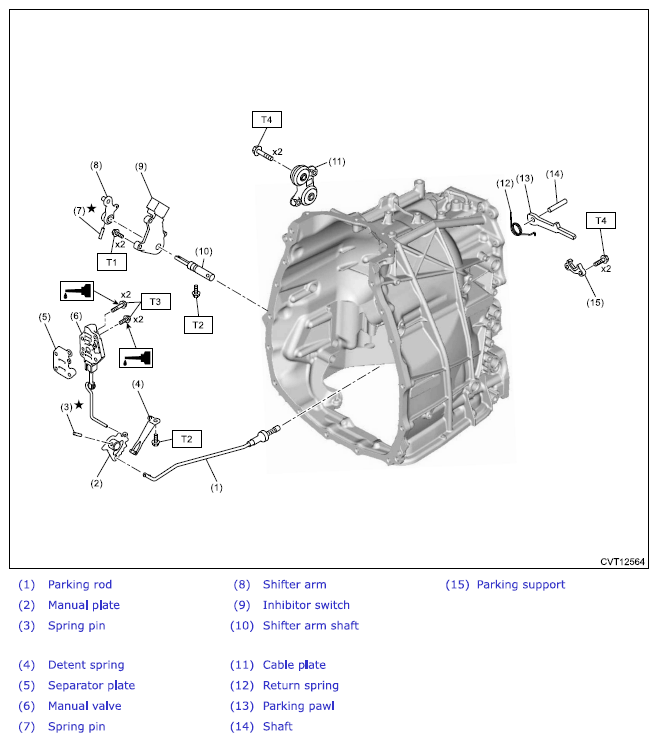

Fig 1: Exploded View Of Transmission Control Device Components

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 5 (0.5, 3.7)

T2: 7 (0.7, 5.2)

T3: 9 (0.9, 6.6)

T4: 25 (2.5, 18.4)
