Oil Pan: Installation

Install a new O-ring to the oil strainer.
NOTE: Apply CVTF to the O-rings.
Install the oil strainer.
Tightening torque:

9 N.m (0.9 kgf-m, 6.6 ft-lb)
Attach the magnet on the oil pan.

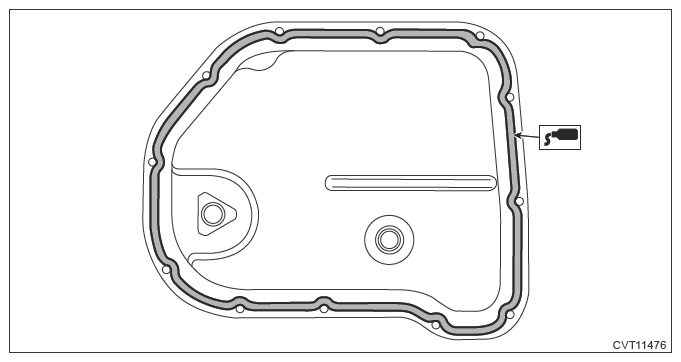

Apply liquid gasket to the mating surface of the oil pan as shown in the figure, and temporarily install the oil pan.
NOTE:
- Before applying liquid gasket, degrease the old liquid gasket seal surfaces of the oil pan and transmission body.
- Install within 5 min. after applying liquid gasket.
Liquid gasket:

THREE BOND 1217B (part No. K0877YA020) or equivalent

Courtesy of SUBARU OF AMERICA, INC.
Tighten the bolts evenly.
Tightening torque:

5 N.m (0.5 kgf-m, 3.7 ft-lb)
Fill with CVTF. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>CVTF>REPLACEMENT .
