Drive Sprocket

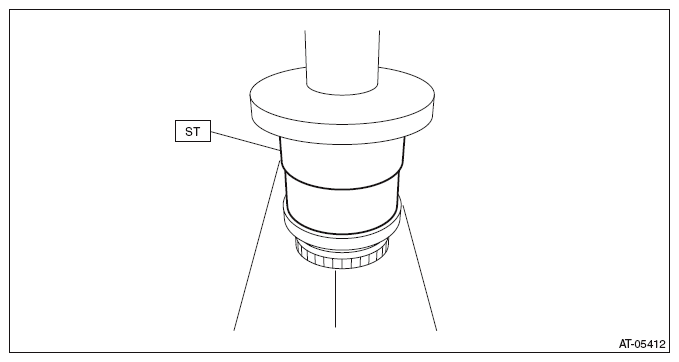

  1. Using the ST and a press, press-fit a new ball bearing.
    NOTE: Apply CVTF to the press-fitting area.

    Preparation tool:

    ST: PRESS SNAP RING (499755502)

    G10317775Courtesy of SUBARU OF AMERICA, INC.
  2. Install the snap ring.
