Drive Sprocket

  1. Remove the snap ring.
    G08318177Courtesy of SUBARU OF AMERICA, INC.

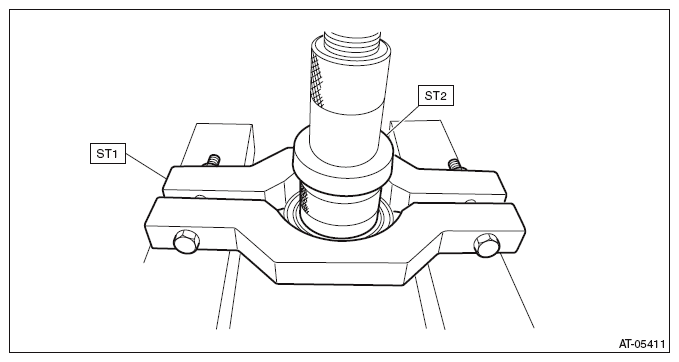

  2. Remove the ball bearing using ST1, ST2 and a press.

    Preparation tool:

    ST1: REMOVER (498077600)

    ST2: INSTALLER (399513600)

    G10317774Courtesy of SUBARU OF AMERICA, INC.
