After Overhaul

Install the torque converter. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>Torque Converter>INSTALLATION .
Remove the filler plug (for overhaul), and refill approx. 10 L (10.6 US qt, 8.8 Imp qt) of CVTF.
CAUTION: Always use specified CVTF. Using fluid other than specified CVTF will cause malfunction.

CVTF: Ref. to RECOMMENDED MATERIALS .

Courtesy of SUBARU OF AMERICA, INC.

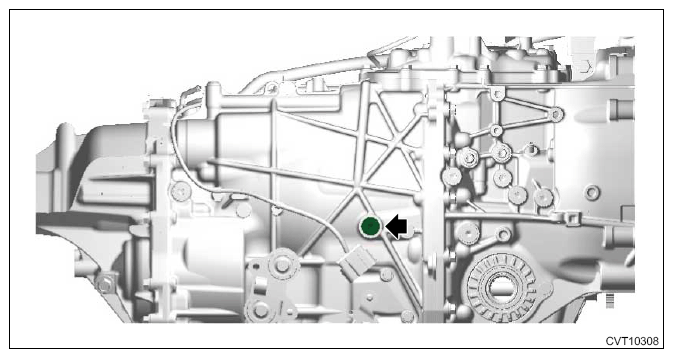

Using a new gasket, install the filler plug (for overhaul).
Tightening torque:

50 N.m (5.1 kgf.m, 36.9 ft.lb)
