Primary Speed Sensor: Removal
CAUTION:
If water or oil contacts the connector terminal of primary speed sensor, replace it with a new part.
- Remove the transmission body. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>Transmission Assembly>REMOVAL .

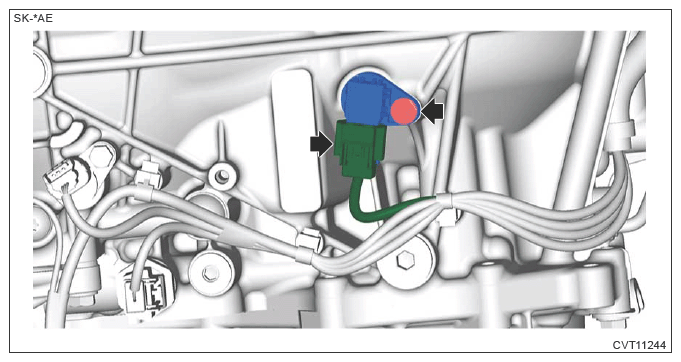

- Disconnect the connector, and remove the primary speed sensor.
