Reduction Drive Gear: Installation

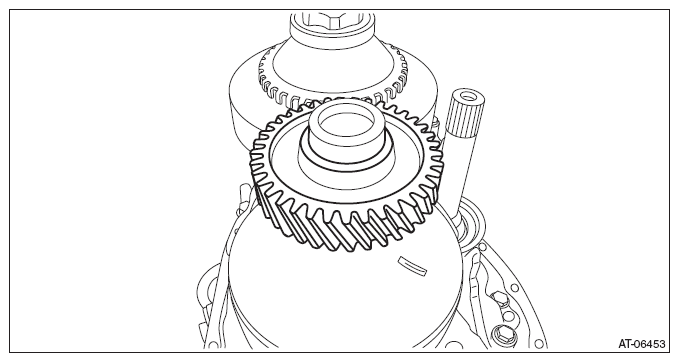

  1. Install the reduction drive gear.
    G08317982Courtesy of SUBARU OF AMERICA, INC.
  2. Select the reduction drive gear shim. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>Reduction Drive Gear>ADJUSTMENT .
  3. Install the selected reduction drive gear shim.
  4. Install the transmission case. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>Transmission Case>INSTALLATION .
  5. Install the transmission control device. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>Transmission Control Device>INSTALLATION .
  6. Install the oil strainer and oil pan. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>Oil Pan>INSTALLATION .
  7. Install the reduction driven gear. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>Reduction Driven Gear>INSTALLATION .
  8. Install the parking pawl. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>Parking Pawl>INSTALLATION .
  9. Install the transfer driven gear. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>Transfer Driven Gear>INSTALLATION .
  10. Install the transfer clutch. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>Transfer Clutch>INSTALLATION .
  11. Install the extension case. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>Extension Case>INSTALLATION .
  12. Install the electric oil pump. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>Electric Fluid Pump>INSTALLATION .
  13. Install the inhibitor switch. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>Inhibitor Switch>INSTALLATION .
  14. Install the secondary speed sensor. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>Secondary Speed Sensor>INSTALLATION .
  15. Install the primary speed sensor. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>Primary Speed Sensor>INSTALLATION .
  16. Install the turbine speed sensor. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>Turbine Speed Sensor>INSTALLATION .
  17. Install the transmission harness. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>Transmission Harness>INSTALLATION .
  18. Install the control valve body. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>Control Valve Body>INSTALLATION .
  19. Install the air breather hose. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>Air Breather Hose>INSTALLATION .
  20. Install the transmission body. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>Transmission Assembly>INSTALLATION .
