Reverse Brake: Disassembly

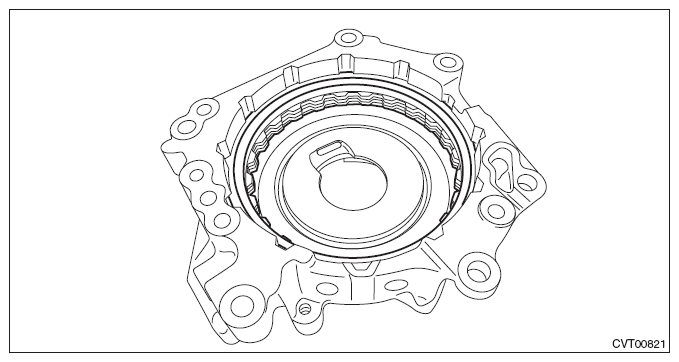

Remove the snap ring, and then remove the retaining plate, drive plate, driven plate and dish plate.

Courtesy of SUBARU OF AMERICA, INC.
Compress the return spring using the ST and a press to remove the snap ring.
Preparation tool:

ST: COMPRESSOR SPECIAL TOOL (18762AA001)

Courtesy of SUBARU OF AMERICA, INC.

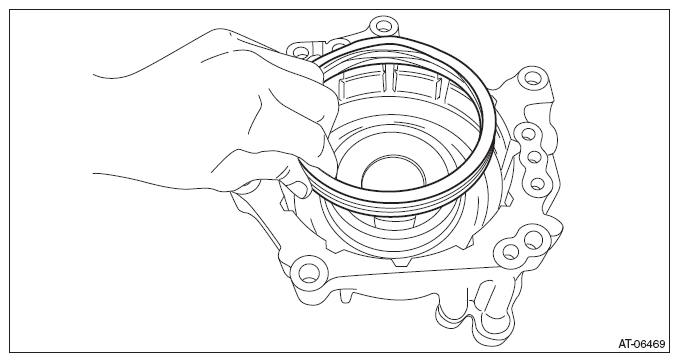

Remove the ST, and remove the spring retainer.

Courtesy of SUBARU OF AMERICA, INC.

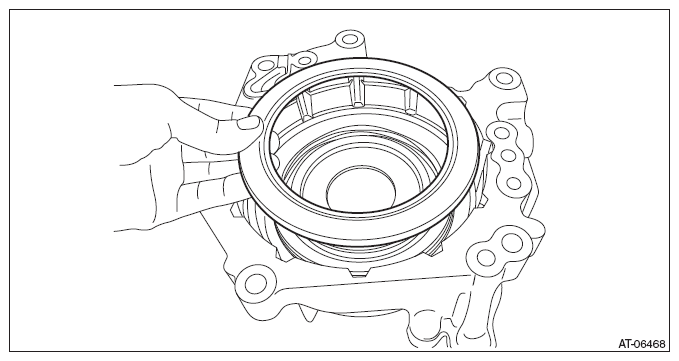

Remove the return spring.

Courtesy of SUBARU OF AMERICA, INC.

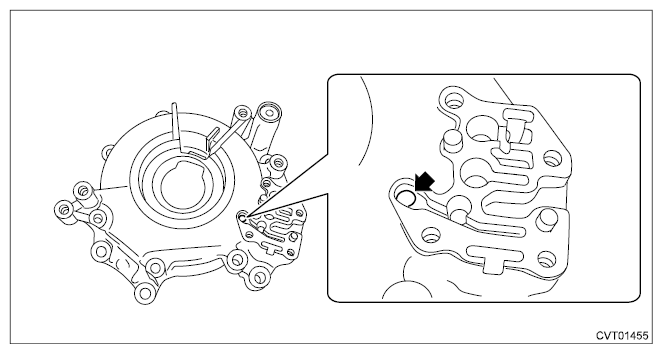

Remove the reverse brake piston by blowing compressed air from reverse brake housing hole.

Courtesy of SUBARU OF AMERICA, INC.
