Transfer Clutch: Disassembly

Remove the snap ring (A), and then remove the pressure plate, drive plate and driven plate.

Courtesy of SUBARU OF AMERICA, INC.
Compress the return spring using the ST and a press to remove the snap ring (A) and the transfer clutch piston seal (B).
Preparation tool:

ST: COMPRESSOR SPECIAL TOOL (18762AA001)

Courtesy of SUBARU OF AMERICA, INC.
Remove the return spring.

Courtesy of SUBARU OF AMERICA, INC.

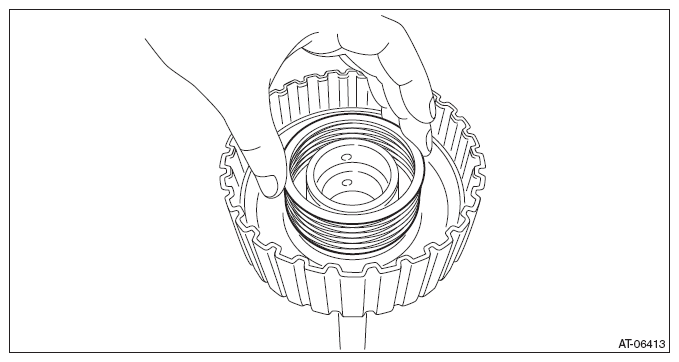

Remove the transfer clutch piston by blowing compressed air through transfer clutch hole.
NOTE: Plug the holes through which the compressed air is not blown.

Courtesy of SUBARU OF AMERICA, INC.

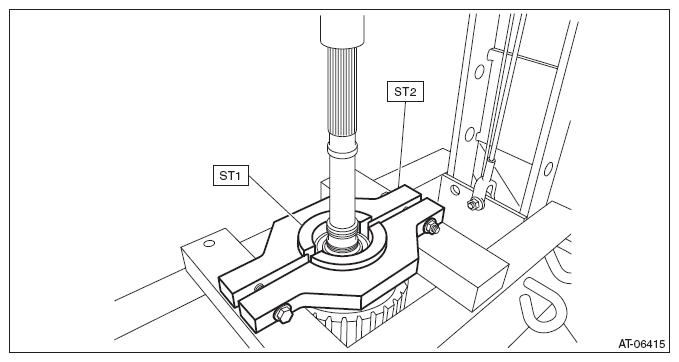

Remove the ball bearing using ST1, ST2 and a press.
Preparation tool:

ST1: BEARING REMOVER (18767AA010)

ST2: REMOVER (18723AA000)
