Transfer Driven Gear: Assembly

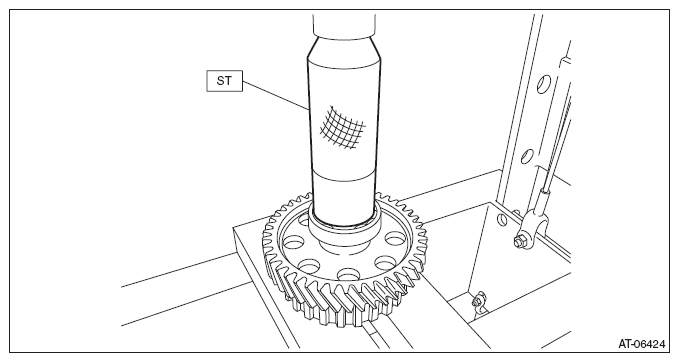

  1. Using the ST and a press, press-fit a new ball bearing.
    NOTE: Apply CVTF to the ball bearing.

    Preparation tool:

    ST: INSTALLER (899580100)

    G08317927Courtesy of SUBARU OF AMERICA, INC.
