Transfer Driven Gear: Removal

  1. Remove the transmission body. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>Transmission Assembly>REMOVAL .
  2. Remove the electric oil pump. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>Electric Fluid Pump>REMOVAL
  3. Remove the extension case. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>Extension Case>REMOVAL
  4. Remove the transfer clutch. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>Transfer Clutch>REMOVAL

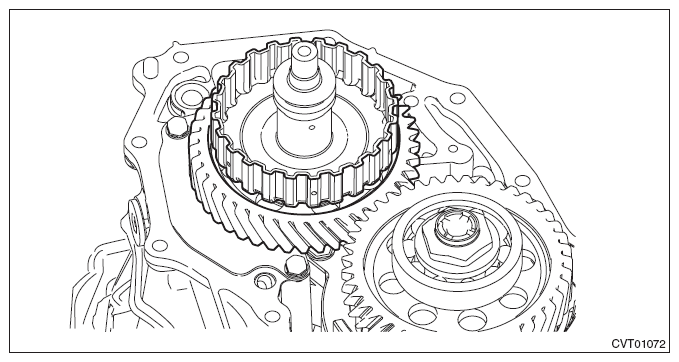

  5. Remove the transfer driven gear.
    G10218727Courtesy of SUBARU OF AMERICA, INC.

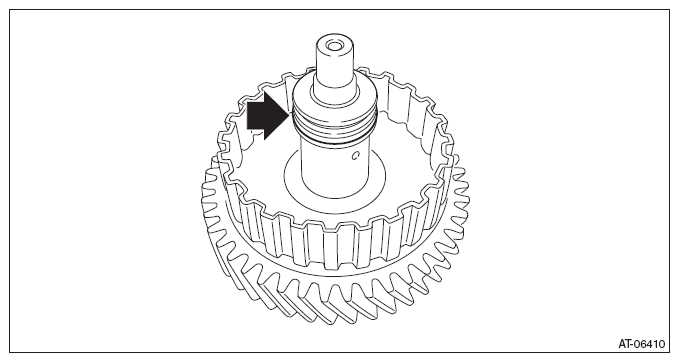

  6. Remove the seal rings.
    G08317901Courtesy of SUBARU OF AMERICA, INC.
