Transmission Assembly: Installation

When having overhauled the transmission body, refer to "Preparation for overhaul". Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>Preparation for Overhaul>PROCEDURE>AFTER OVERHAUL .
Replace the differential side retainer oil seal with a new part. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>Differential Side Retainer Oil Seal>REPLACEMENT .
Install the transmission case cover (rear).
Tightening torque:

8 N.m (0.8 kgf-m, 5.9 ft-lb)
Install the rear cushion rubber.
Tightening torque:

40 N.m (4.1 kgf-m, 29.5 ft-lb)
Place the transmission body on the transmission jack.

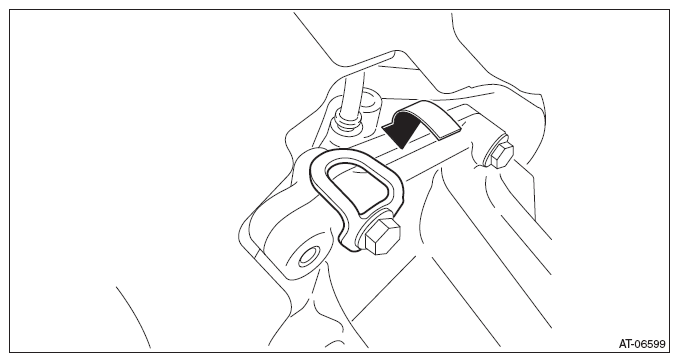

Strike and bend the transmission hanger with a rubber hammer etc. so that it gets in contact with the transmission case.
CAUTION: Do not apply extra overload or impact to the transmission case.

Courtesy of SUBARU OF AMERICA, INC.
Install the transmission body.
NOTE:
- Adjust the position and angle of the transmission jack and engine body if necessary.
- Temporarily install the bolts and nuts which hold lower side of the transmission.
Courtesy of SUBARU OF AMERICA, INC.
Install the transmission rear Cross Member.
Tightening torque:

T1: 35 N.m (3.6 kgf-m, 25.8 ft-lb)

T2: 70 N.m (7.1 kgf-m, 51.6 ft-lb)

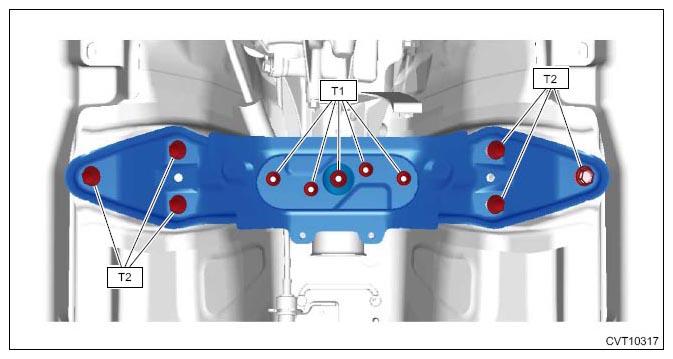

Fig 1: Transmission Rear Cross Member Bolts And Nuts (With Torque Specification)
Courtesy of SUBARU OF AMERICA, INC.
Remove the transmission jack.
Tighten the bolts and nuts which hold lower side of the transmission.
Tightening torque:

50 N.m (5.1 kgf-m, 36.9 ft-lb)
Install the exhaust hanger bracket.
Tightening torque:

23 N.m (2.3 kgf-m, 17.0 ft-lb)
Connect the select cable to the transmission main body.
CAUTION: Do not apply excessive load while holding the part (a).

Courtesy of SUBARU OF AMERICA, INC.

NOTE: Set the washer before installing the snap pin.

Tightening torque:

25 N.m (2.5 kgf-m, 18.4 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.
Install the bolts which hold upper side of transmission.
Tightening torque:

50 N.m (5.1 kgf-m, 36.9 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.
Install the propeller shaft. Ref. to PROPELLER SHAFT/DRIVE SHAFT/AXLE>PROPELLER SHAFT>INSTALLATION .
Install the front drive shaft. Ref. to PROPELLER SHAFT/DRIVE SHAFT/AXLE>FRONT DRIVE SHAFT>INSTALLATION .
Remove ST (ENGINE SUPPORT BRACKET and ENGINE SUPPORT).

Install the torque converter to drive plate.

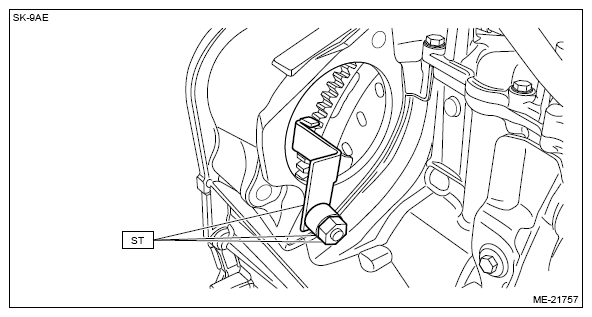

Remove the ST from converter case.

NOTE: Be careful not to drop the ST into the converter case when removing the ST.

Courtesy of SUBARU OF AMERICA, INC.

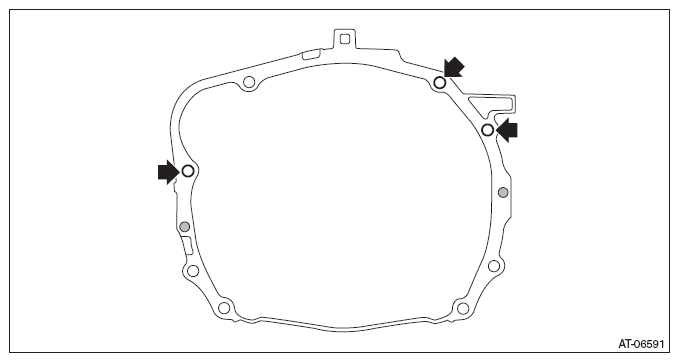

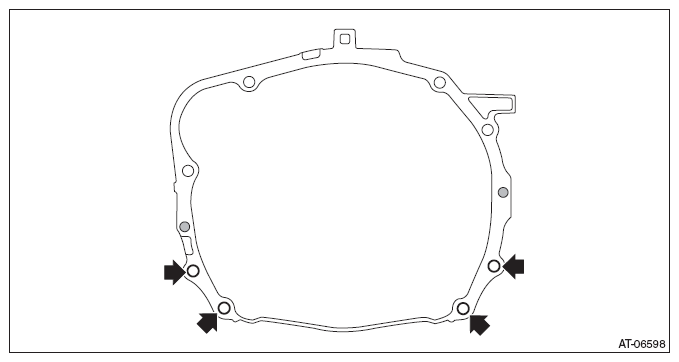

Insert the wrench into the crank pulley bolt, and rotate the crank pulley to attach the four bolts securing the torque converter to the drive plate.
NOTE: Be careful not to drop bolts into the converter housing.

Tightening torque:

25 N.m (2.5 kgf-m, 18.4 ft-lb)

Install the plug (B) to the service hole, and connect the connector (A).

Courtesy of SUBARU OF AMERICA, INC.

Install the PCV hose. Ref. to EMISSION CONTROL (AUX. EMISSION CONTROL DEVICES (H4DO)>PCV HOSE>INSTALLATION>PCV HOSE NO. 1 .

Install the engine wiring harness stay.

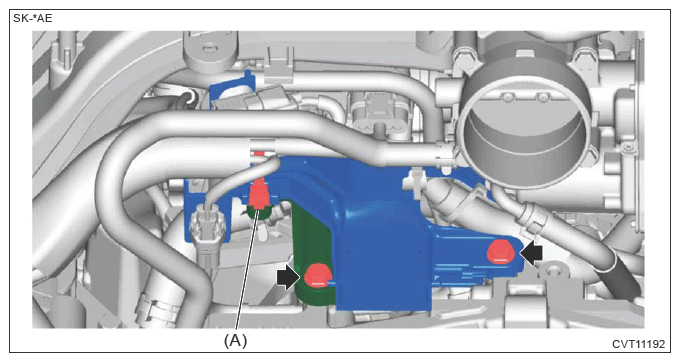

Install the engine wiring harness stay, and install the clip (A).
Tightening torque:

19 N.m (1.9 kgf-m, 14.0 ft-lb)

Install the engine ground and the harness case.

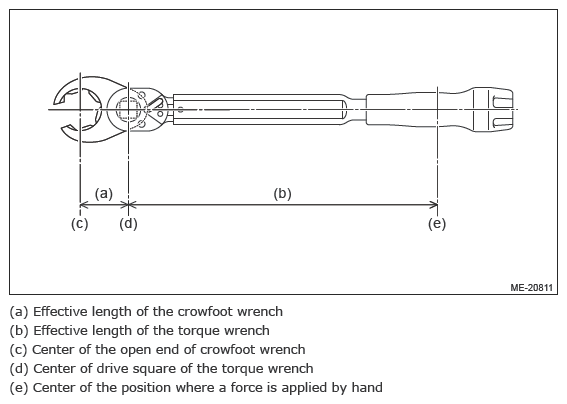

NOTE: Use the following formula to calculate the reading of a torque wrench when tightening with a crowfoot wrench.

Calculation formula

T = 19 N.m (1.9 kgf-m, 14.0 ft-lb) x L1/(L1 + L2)

T: Reading of the torque wrench
L1: Effective length of the torque wrench
L2: Effective length of the crowfoot wrench

NOTE: If the effective length of the tool used is unknown, consult the manufacturer of the tool.

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:

19 N.m (1.9 kgf-m, 14.0 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.

Install the starter. Ref. to STARTING/CHARGING SYSTEMS (H4DO)>STARTER>INSTALLATION .
Install the TCM. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>Transmission Control Module (TCM)>INSTALLATION .

Install the CVTF cooler (with warmer feature).

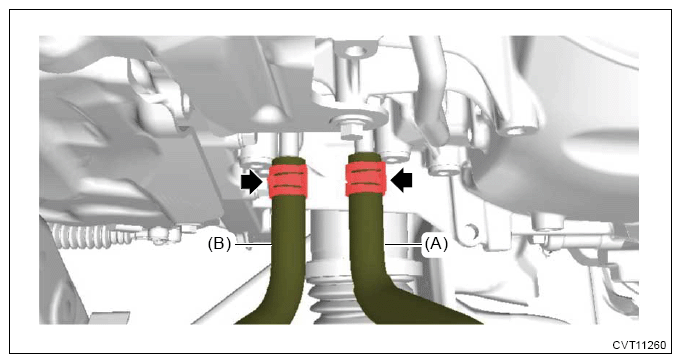

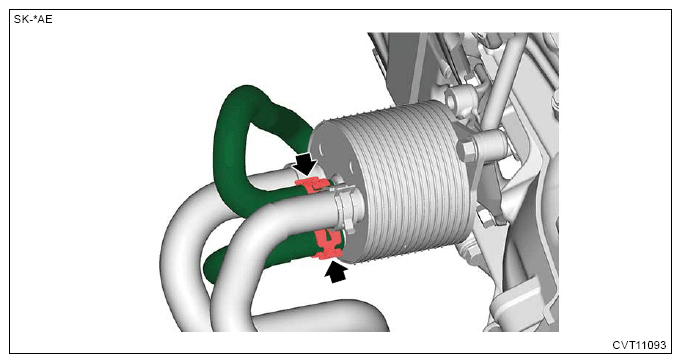

Install a new CVTF cooler inlet hose (A) and a new CVTF cooler outlet hose (B).

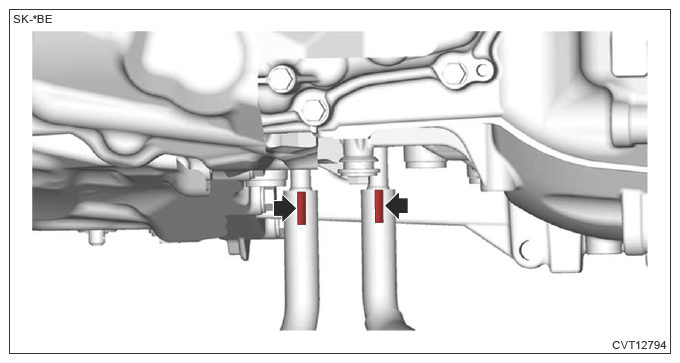

NOTE: Install the hose with the mark facing upward.

Courtesy of SUBARU OF AMERICA, INC.

Courtesy of SUBARU OF AMERICA, INC.

Install the CVTF cooler (with warmer feature).
Tightening torque:

23 N.m (2.3 kgf-m, 17.0 ft-lb)

Connect the CVTF cooler inlet hose and CVTF cooler outlet hose.

Courtesy of SUBARU OF AMERICA, INC.

Install the engine rear hanger.
Tightening torque:

21 N.m (2.1 kgf-m, 15.5 ft-lb)
Connect the transmission harness connector to the engine wiring harness.
Install the air intake boot. Ref. to INTAKE (INDUCTION) (H4DO)>AIR INTAKE BOOT>INSTALLATION .
Shift the select lever to "P range".
Connect the ground terminal to battery sensor. Ref. to GROUND TERMINAL REMOVAL OR INSTALLATION .
Apply the parking brake.
Fill differential gear oil. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>Differential Gear Oil>REPLACEMENT .
Fill with CVTF. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>CVTF>REPLACEMENT .
Perform "Clear AT learning value" and "AT learning mode" using the Subaru Select Monitor. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>AT learning .
When the transmission body or hypoid gear set was replaced, perform the rear differential inspection mode using the Subaru Select Monitor. Ref. to DIFFERENTIALS>REAR DIFFERENTIAL INSPECTION MODE .
Perform the road test to make sure there is no fault. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>Road Test>INSPECTION .
