Transmission Case: Disassembly

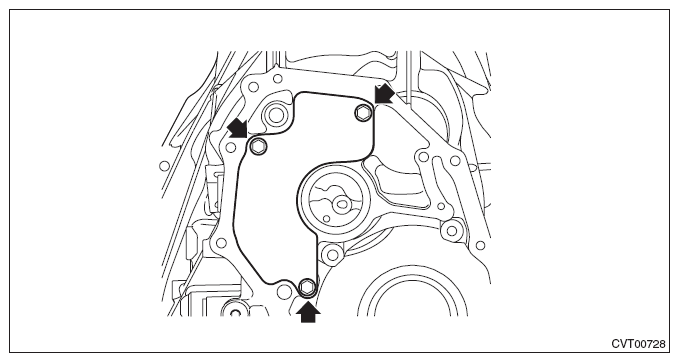

  1. Remove the oil stopper plate.
    G10218771Courtesy of SUBARU OF AMERICA, INC.

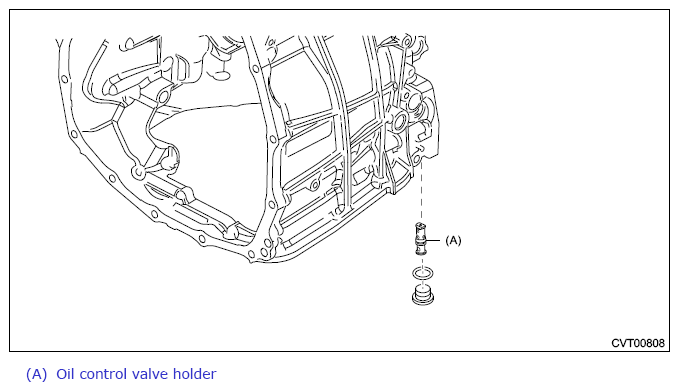

  2. Remove the plug, and remove the oil control valve holder.
    G13869415Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the O-ring from the oil control valve holder.

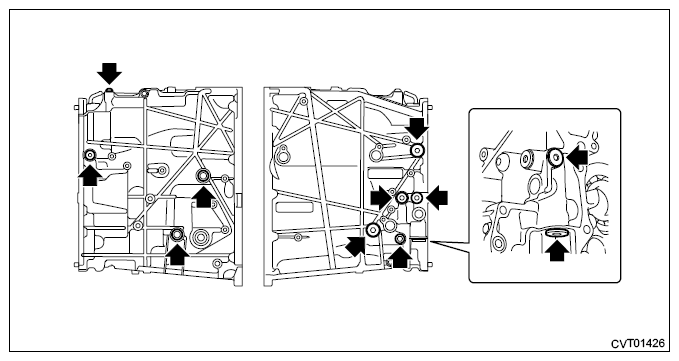

  4. Remove all plugs.
    G13225862Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the oil seal using a screwdriver wrapped with cloth etc.
    G10218773Courtesy of SUBARU OF AMERICA, INC.
  6. Remove the ball bearing of the secondary pulley using the ST1 and ST2.

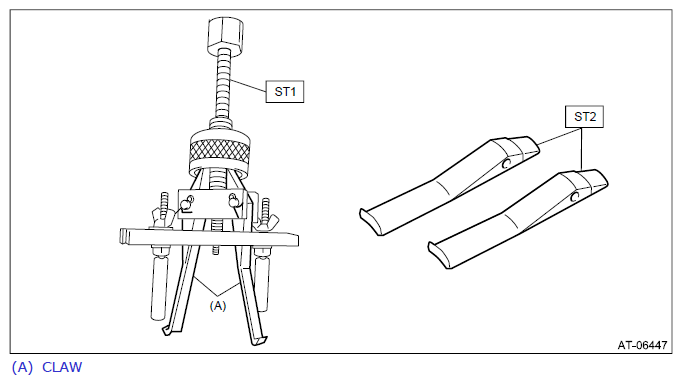

    1. Remove the claw (A) of ST1, and attach the claw of ST2.

      Preparation tool:

      ST1: PULLER ASSY (398527700)

      ST2: CLAW (18760AA000)

      G10407211Courtesy of SUBARU OF AMERICA, INC.

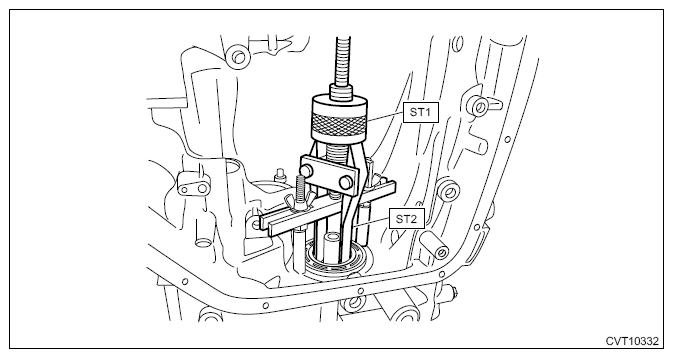

    2. Remove the ball bearing of the secondary pulley using the ST1 and ST2.

      Preparation tool:

      ST1: PULLER ASSY (398527700)

      ST2: CLAW (18760AA000)

      G11255823Courtesy of SUBARU OF AMERICA, INC.

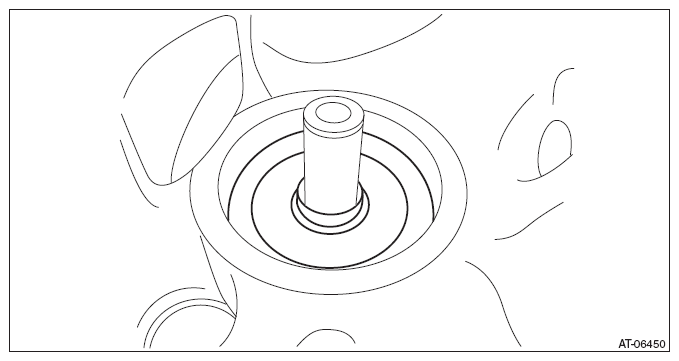

  7. Remove the oil guide.
    G08317971Courtesy of SUBARU OF AMERICA, INC.

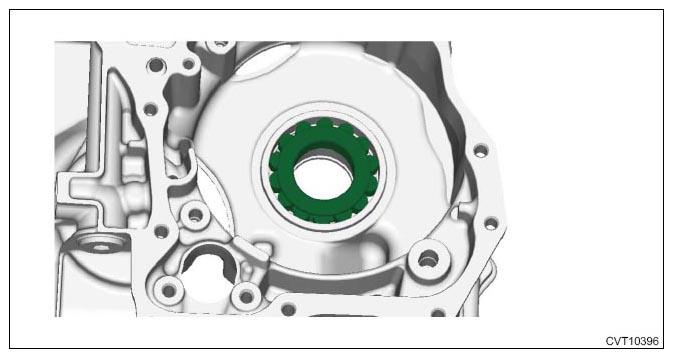

  8. Remove the roller bearing.
    G11255825Courtesy of SUBARU OF AMERICA, INC.

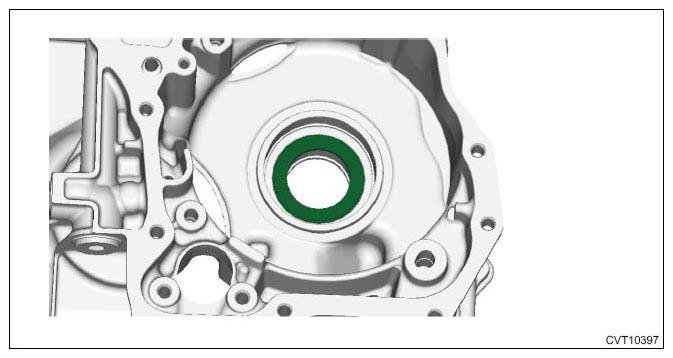

  9. Remove the thrust bearing.
    G11255826Courtesy of SUBARU OF AMERICA, INC.

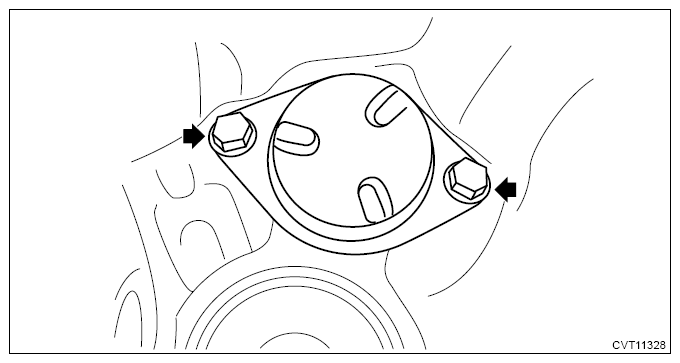

  10. Remove the CVTF filter cover and gasket.
    G13225869Courtesy of SUBARU OF AMERICA, INC.

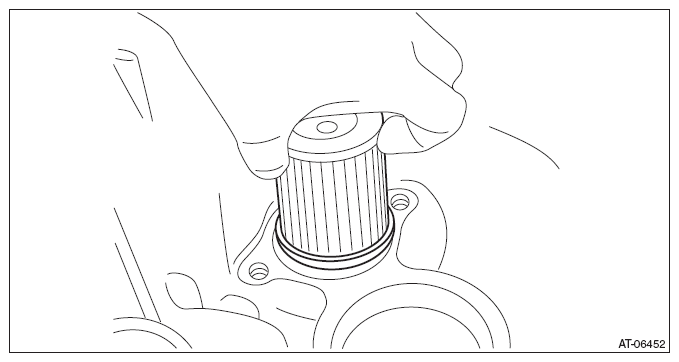

  11. Remove the CVTF filter.
    G08317974Courtesy of SUBARU OF AMERICA, INC.
