Transmission Harness: Installation
- Connect the transmission harness to the control valve body. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>Control Valve Body>INSTALLATION .

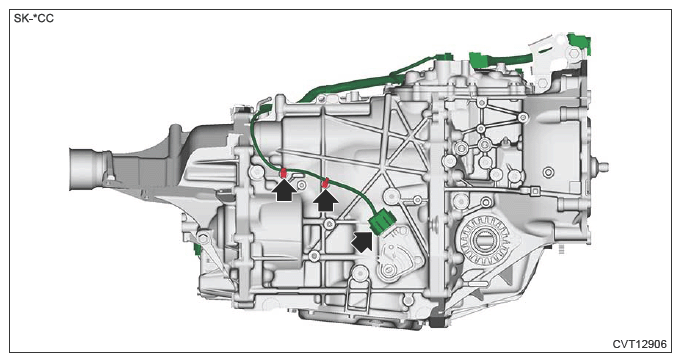

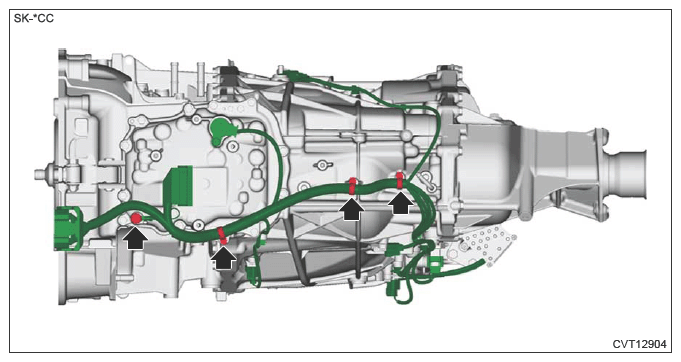

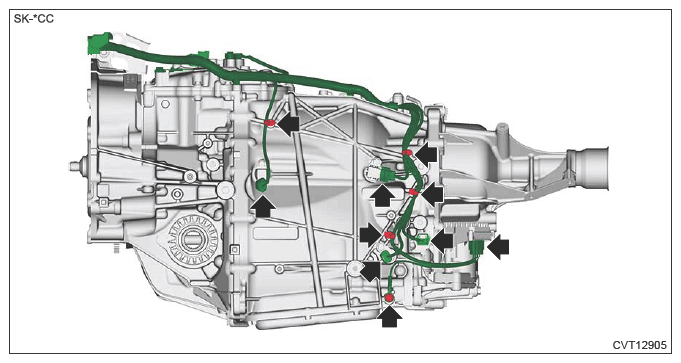

- Connect the connector and ground terminal as shown in the figure, and install the clips.
Tightening torque:
14 N.m (1.4 kgf-m, 10.3 ft-lb)
Tightening torque:
13 N.m (1.3 kgf-m, 9.6 ft-lb)
- Install the air breather hose. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>Air Breather Hose>INSTALLATION .
- Install the transmission body, Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>Transmission Assembly>INSTALLATION .
