Pitching Stopper

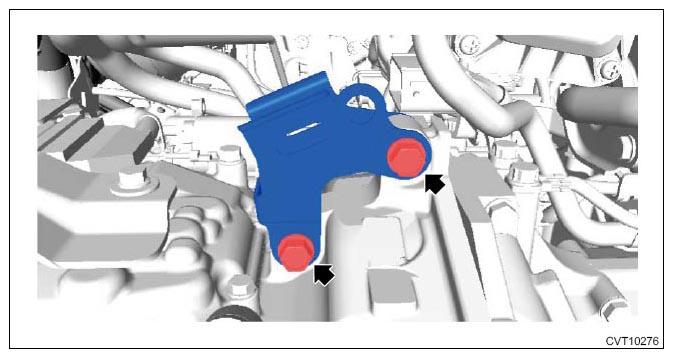

Install the pitching stopper bracket.
NOTE: Tighten the bolt side while holding the nut side.

Tightening torque:

41 N.m (4.2 kgf-m, 30.2 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.

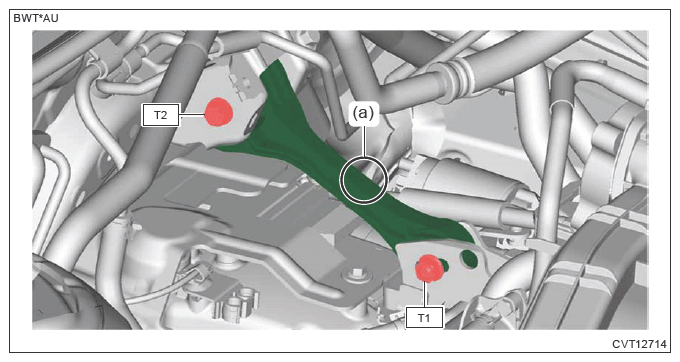

Install the pitching stopper.
NOTE: Install with the front mark (a) facing towards the front of the vehicle.

Tightening torque:

T1: 50 N.m (5.1 kgf-m, 36.9 ft-lb)

T2: 58 N.m (5.9 kgf-m, 42.8 ft-lb)

Fig 1: Pitching Stopper Bolts (With Torque Specification)
Courtesy of SUBARU OF AMERICA, INC.

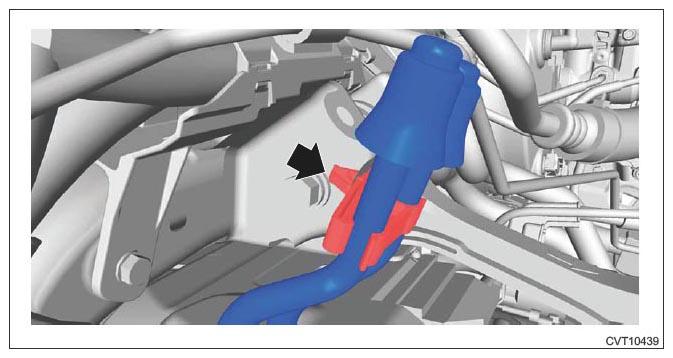

Install the air breather hose bracket.

Courtesy of SUBARU OF AMERICA, INC.
Install the air intake boot. Ref. to INTAKE (INDUCTION) (H4DO)>AIR INTAKE BOOT>INSTALLATION .
