Pitching Stopper

  1. Remove the clip from the air intake boot, and loosen the clamp.
    G13223823Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the air intake boot, and place it aside so that it does not interfere with the work.
    CAUTION: Be careful not to pull out the PCV hose.
    G13223824Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the air breather hose bracket.
    G11255511Courtesy of SUBARU OF AMERICA, INC.

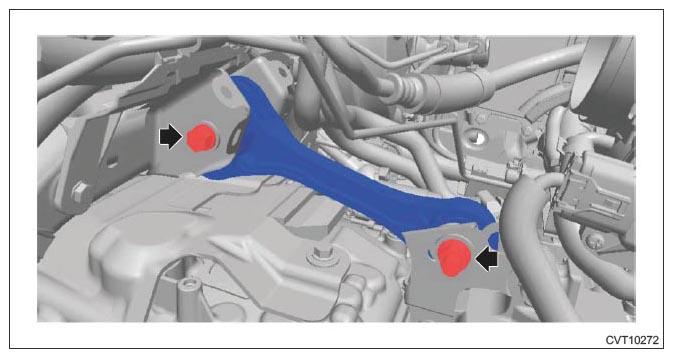

  4. Remove the pitching stopper.
    G11255512Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the pitching stopper bracket.
    NOTE: Perform this procedure only when required.
    G11255515Courtesy of SUBARU OF AMERICA, INC.
