Turbine Speed Sensor: Removal
CAUTION:
If water or oil contacts the connector terminal of turbine speed sensor, replace it with a new part.
- Disconnect the ground terminal from battery sensor, Ref. to GROUND TERMINAL REMOVAL OR INSTALLATION .
- Remove the front exhaust pipe. Ref. to EXHAUST (H4DO)>FRONT EXHAUST PIPE>REMOVAL .

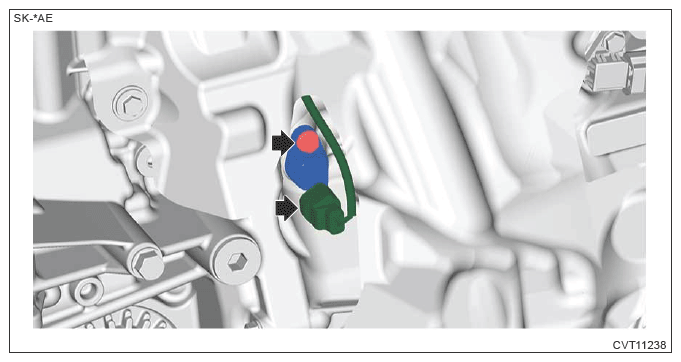

- Disconnect the connector and remove the turbine speed sensor.
