X MODE Switch: Inspection

Courtesy of SUBARU OF AMERICA, INC.

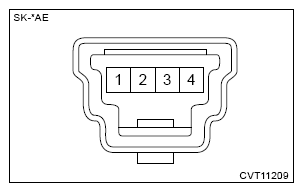

Check the resistance between connector terminals.

Terminal No.	Inspection conditions	Standard
1 - 4	Counterclockwise (hold)	0 Ω
	PUSH (hold)	Approx. 1 kΩ
	Clockwise (hold)	Approx. 3.67 kΩ

Apply battery voltage between the connector terminals to check lighting status of illumination.

CAUTION: When applying battery voltage, do not mix up the positive (+) side and the negative (-) side.
Incorrect polarity connection may cause LED damage inside the switch.

Terminal No.	Inspection conditions	Specifications
2 (+) - 3 (-)	Apply battery voltage.	Light ON
