X MODE Switch: Removal

  1. Disconnect the ground terminal from battery sensor, Ref. to GROUND TERMINAL REMOVAL OR INSTALLATION .
  2. Release the shift lock using a screwdriver, etc. and shift the select lever to the "N" range.
    G13868655Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the cover assembly front, Ref. to EXTERIOR/INTERIOR TRIM>CONSOLE BOX>REMOVAL .

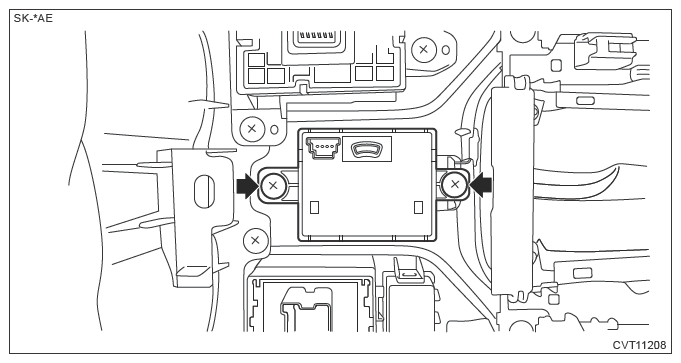

  4. Remove the X mode switch.
    G13225759Courtesy of SUBARU OF AMERICA, INC.
