Select Lever

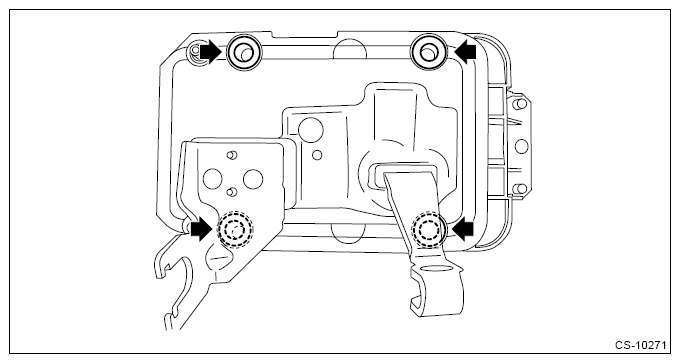

  1. Remove the spacer.
    G13225481Courtesy of SUBARU OF AMERICA, INC.

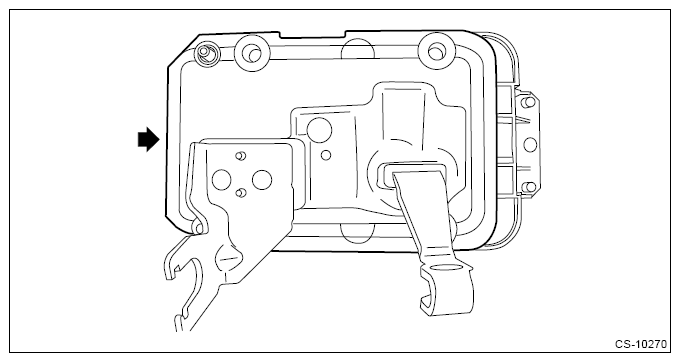

  2. Remove the gasket.
    G13225482Courtesy of SUBARU OF AMERICA, INC.

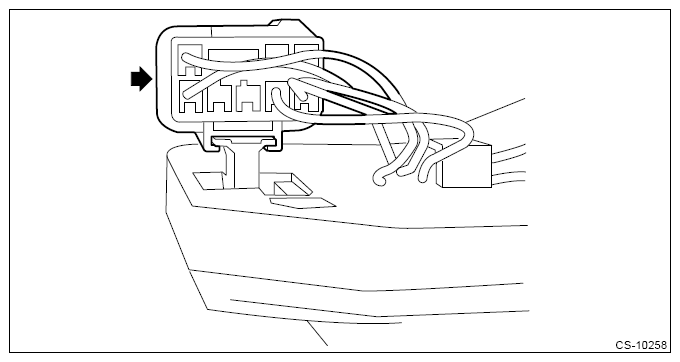

  3. Remove the connector.
    G13225483Courtesy of SUBARU OF AMERICA, INC.

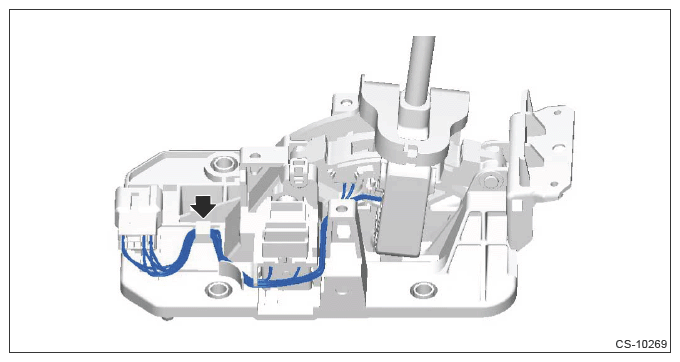

  4. Remove the harness.
    G13225484Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the solenoid unit. Ref. to CONTROL SYSTEMS>AT Shift Lock Solenoid and "P" Range Switch>REMOVAL>SOLENOID UNIT .
  6. Remove the nut.
    G08550595Courtesy of SUBARU OF AMERICA, INC.

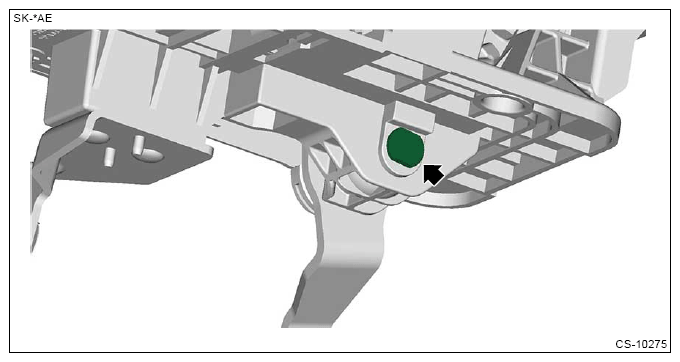

  7. Remove the control shaft.
    G13225486Courtesy of SUBARU OF AMERICA, INC.
  8. Remove the nut.
    G08550597Courtesy of SUBARU OF AMERICA, INC.

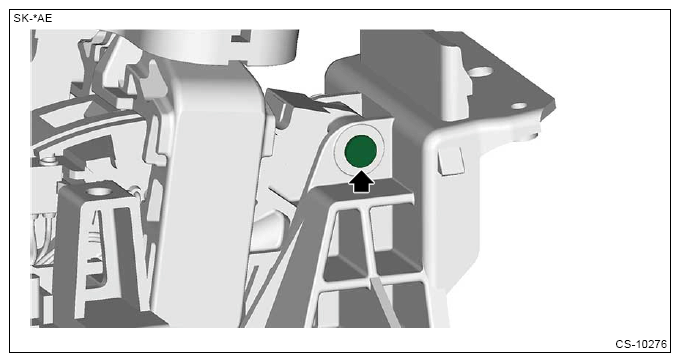

  9. Remove the guide pin.
    G13225488Courtesy of SUBARU OF AMERICA, INC.

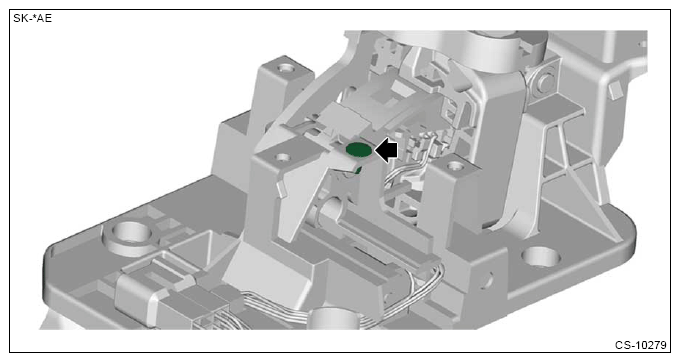

  10. Remove the clamp.
    G13225489Courtesy of SUBARU OF AMERICA, INC.

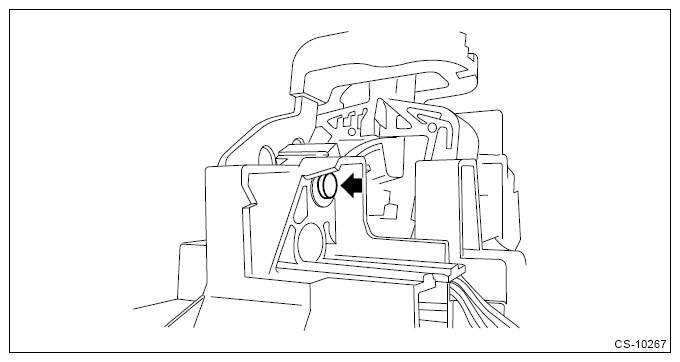

  11. Remove the guide pin.
    G13225490Courtesy of SUBARU OF AMERICA, INC.
  12. Remove the lever.
    G08550601Courtesy of SUBARU OF AMERICA, INC.

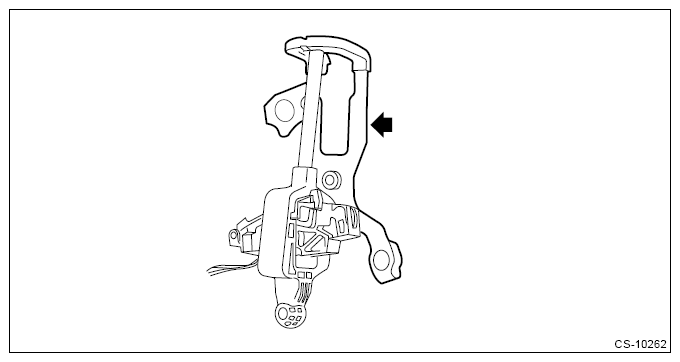

  13. Remove the arm.
    G13225492Courtesy of SUBARU OF AMERICA, INC.
  14. Remove the plate guide.
    G10319310Courtesy of SUBARU OF AMERICA, INC.

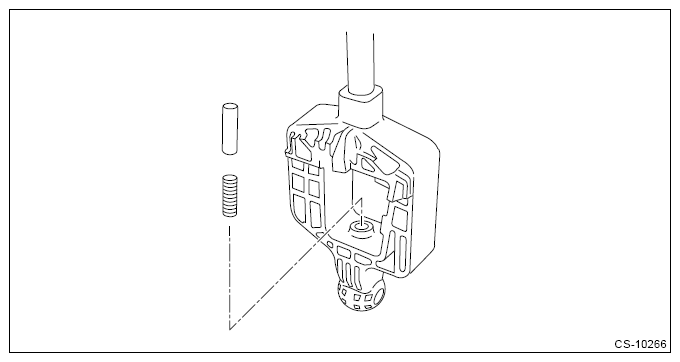

  15. Remove the detent rod and the detent spring.
G13225494Courtesy of SUBARU OF AMERICA, INC.
