Select Lever

  1. Apply grease to each moving parts.

    Grease:

    Multemp D No. 2 or equivalent

  2. Install the detent rod and the detent spring.
  3. Install the plate guide.
  4. Install the arm.
  5. Install the lever.
  6. Install the guide pin.
  7. Install the clamp.
  8. Install the guide pin.

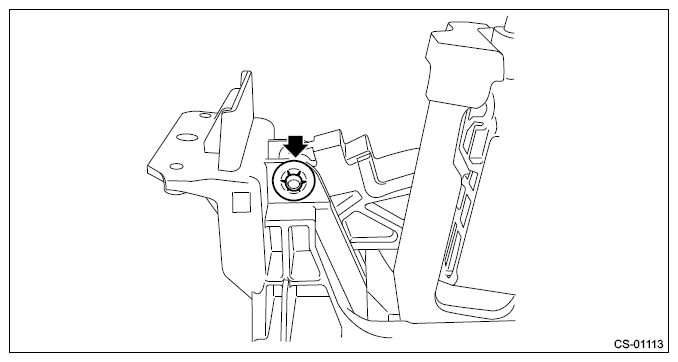

  9. Install a new nut.
    G13225501Courtesy of SUBARU OF AMERICA, INC.
  10. Install the control shaft.

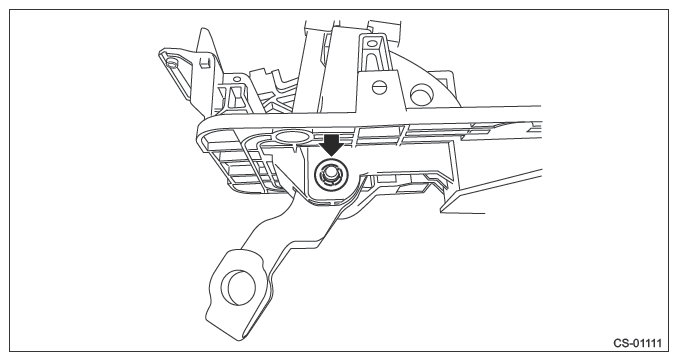

  11. Install a new nut.
    G13225502Courtesy of SUBARU OF AMERICA, INC.
  12. Install the solenoid unit. Ref. to CONTROL SYSTEMS>AT Shift Lock Solenoid and "P" Range Switch>INSTALLATION>SOLENOID UNIT .
  13. Install the harness.
  14. Install the connector.
  15. Install the gasket.
  16. Install the spacer.
  17. Check the select lever operation condition.
