Fuel Filler Pipe: Assembly

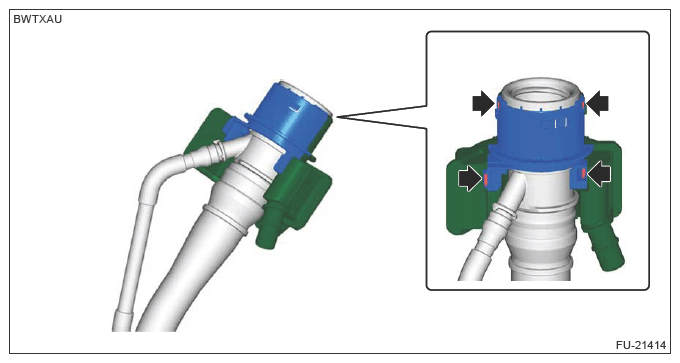

Install the clamp to the filler tube.

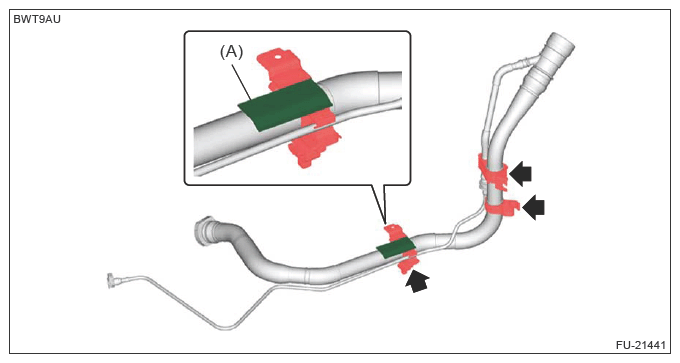

Install a new cushion (A).

Courtesy of SUBARU OF AMERICA, INC.
Install to the filler tube using a new drain filter and a new sub drain filter.

Courtesy of SUBARU OF AMERICA, INC.

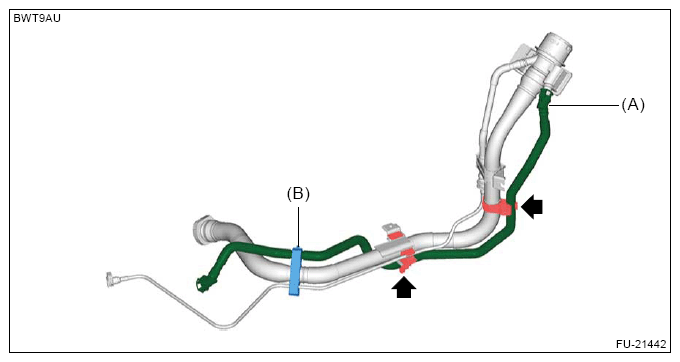

Connect drain tube (A). Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>FUEL DELIVERY AND EVAPORATION LINES>INSTALLATION>QUICK CONNECTOR CONNECTION (TYPE G) .
Install the drain tube (A) to the clamp.
Install a new clamp (B).

Courtesy of SUBARU OF AMERICA, INC.

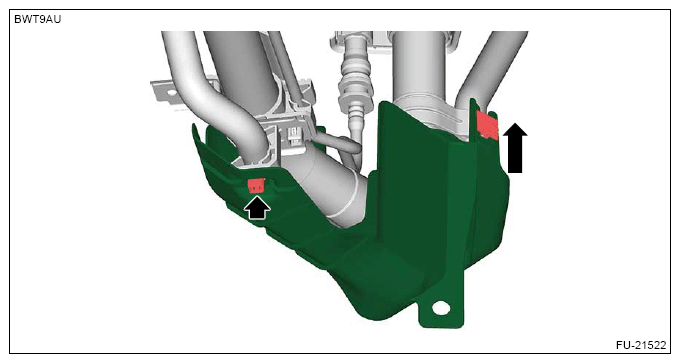

Install the protector A.

Courtesy of SUBARU OF AMERICA, INC.
