Pitching Stopper

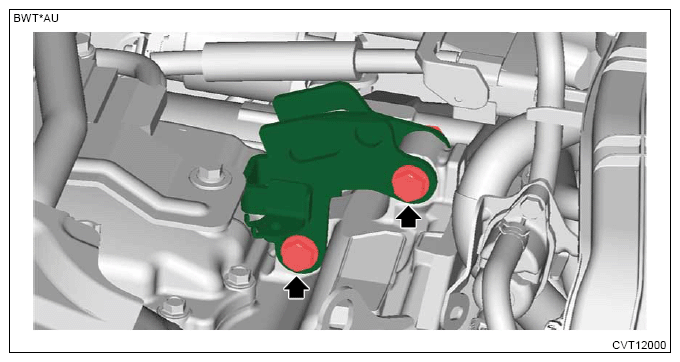

1. Install the pitching stopper bracket.
   CAUTION: Always use a new bolt.
   NOTE: Tighten the bolt side while holding the nut side.

   Tightening torque:

   32 N.m (3.3 kgf-m, 23.6 ft-lb)

   Courtesy of SUBARU OF AMERICA, INC.

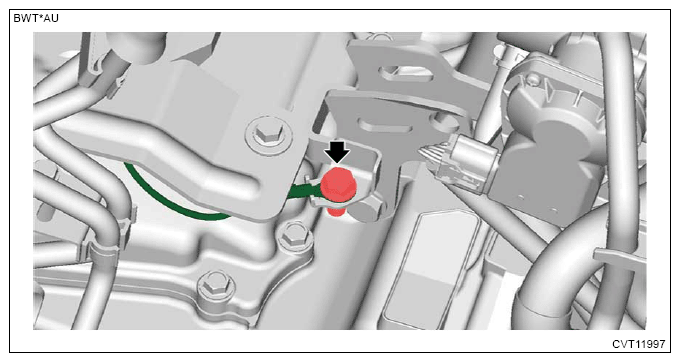

2. Connect the ground cord.

   Tightening torque:

   7 N.m (0.7 kgf-m, 5.2 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.

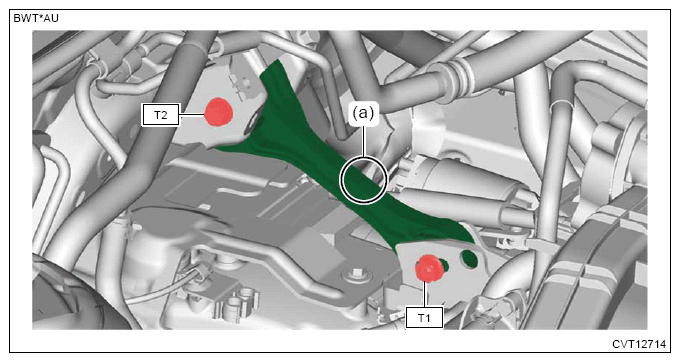

Tightening torque:

T1: 50 N.m (5.1 kgf-m, 36.9 ft-lb)

T2: 58 N.m (5.9 kgf-m, 42.8 ft-lb)

Fig 1: Pitching Stopper Bolts (With Torque Specification)

Courtesy of SUBARU OF AMERICA, INC.
