Front Relay Control Module: Removal

  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the front relay control module from the main fuse box.

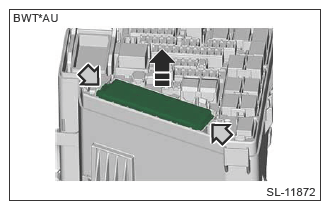

    1. Release the claws, and then remove the front relay control module in the arrow direction.
      G13625802Courtesy of SUBARU OF AMERICA, INC.
    2. Disconnect the connector and remove the front relay control module.
