Backup Battery

CAUTION: Before handling the airbag system components, refer to "CAUTION" of "General Description" in "AIRBAG SYSTEM". Ref. to AIRBAG SYSTEM>GENERAL DESCRIPTION>CAUTION .
  1. Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the data communication module. Ref. to ENTERTAINMENT AND MONITORING>DATA COMMUNICATION MODULE>REMOVAL>DATA COMMUNICATION MODULE .
  3. Remove the backup battery.

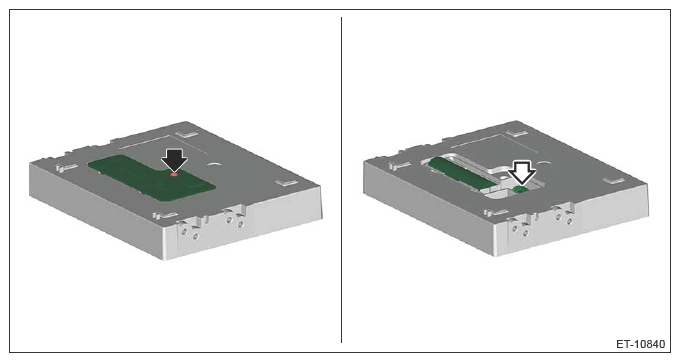

    1. Using TORX®T10, remove the cap screw, and then remove the battery cover.
    2. Disconnect the connector and remove the backup battery.
      G13952118Courtesy of SUBARU OF AMERICA, INC.
