Auto Headlight Beam Leveler Control Module: Removal

CAUTION: Before handling the airbag system components, refer to "CAUTION" of "General Description" in "AIRBAG SYSTEM". Ref. to AIRBAG SYSTEM>GENERAL DESCRIPTION>CAUTION .

1. Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
2. Remove the cover LWR driver. Ref. to EXTERIOR/INTERIOR TRIM>INSTRUMENT PANEL LOWER COVER>REMOVAL .
3. Remove the knee airbag module. Ref. to AIRBAG SYSTEM>KNEE AIRBAG MODULE>REMOVAL .
4. Remove the duct foot driver. Ref. to AIR CONDITIONER>AIR VENT DUCT>REMOVAL>FOOT DUCT .
5. Remove the auto headlight beam leveler control module.

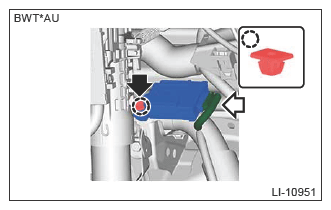

   1. Remove the connectors and screws.
   2. Remove the clips, and remove the auto headlight beam leveler control module.

Courtesy of SUBARU OF AMERICA, INC.
