Backup Battery

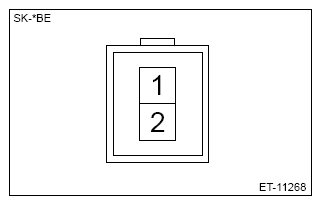

  1. Measure the voltage between connector terminals.
    G13952120Courtesy of SUBARU OF AMERICA, INC.
    Terminal No. Standard
    1 (+) - 2 (-) 2 V or more
  2. Replace the backup battery if the inspection result is not within the standard value.
