Keyless Transmitter Battery

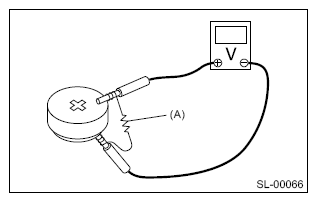

Measure the keyless transmitter battery voltage.

NOTE: Complete the measurement within 5 seconds because the battery discharges during measurement.

Courtesy of SUBARU OF AMERICA, INC.

Battery terminal	Inspection conditions	Standard
(+) - (-)	Connect resistor (A) 47 Ω	2.5 - 3 V

Replace the battery if the inspection result is not within the standard value. (Use CR1620 or equivalent.)
