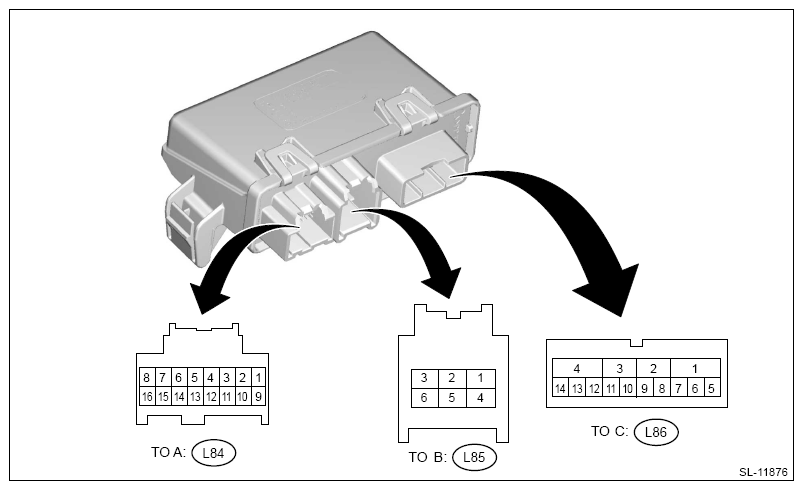

| (L84) No. 1 ←→ (L84) No. 9 |
Touch sensor |
When sensor is ON |
2.7 V or less |
| (L84) No. 2 |
BODY CAN-L |
- |
- |
| (L84) No. 3 ←→ Chassis ground |
Latch switch |
When rear gate is fully closed |
3.7 - 16 V |
| (L84) No. 4 ←→ Chassis ground |
Courtesy switch |
When rear gate is fully closed |
3.7 - 16 V |
| (L84) No. 5 ←→ Chassis ground |
Sector switch |
When rear gate is fully closed |
3.7 - 16 V |
| (L84) No. 6 ←→ Chassis ground |
Power rear gate inner switch |
When power rear gate inner switch is ON |
Less than 1 V |
| (L84) No. 7 |
- |
- |
- |
| (L84) No. 8 |
- |
- |
- |
| (L84) No. 9 |
Switch GND |
- |
- |
| (L84) No. 10 |
BODY CAN-L |
- |
- |
| (L84) No. 11 ←→ Chassis ground |
Ratchet switch |
When rear gate is fully closed |
Less than 1 V |
| (L84) No. 12 ←→ Chassis ground |
Power rear gate inner switch LED |
When the rear gate is open (the power rear gate inner switch LED illuminates) |
9 - 16 V |
| (L84) No. 13 ←→ Chassis ground |
Power rear gate lock switch |
When the power rear gate lock switch is ON |
Less than 1 V |
| (L84) No. 14 |
- |
- |
- |
| (L84) No. 15 ←→ Chassis ground |
Hazard output |
When hazard is not operating |
Less than 1 V |
| (L84) No. 16 ←→ Chassis ground |
Ignition SW |
When ignition switch is ON |
9 - 16 V |
| (L85) No. 1 ←→ Chassis ground |
Battery power supply (+POWER B) |
Always |
9 - 16 V |
| (L85) No. 2 ←→ Chassis ground |
Closer (CLOSE) |
When power rear gate auto closer is in pull-in operation |
9 - 16 V |
| (L85) No. 3 ←→ Chassis ground |
Closer (OPEN) |
When power rear gate auto closer is performing the release operation |
9 - 16 V |
| (L85) No. 4 ←→ Chassis ground |
GND |
Always |
Less than 1 Ω |
| (L85) No. 5 |
- |
- |
- |
| (L85) No. 6 ←→ Chassis ground |
Battery power supply (+B) |
Always |
9 - 16 V |
| (L86) No. 1 |
- |
- |
- |
| (L86) No. 2 |
- |
- |
- |
| (L86) No. 3 ←→ Chassis ground |
Motor (CLOSE) |
When auto-closing is in operation |
Pulse |
| (L86) No. 4 ←→ Chassis ground |
Motor (OPEN) |
When auto-open is in operation |
Pulse |
| (L86) No. 5 ←→ Chassis ground |
Power rear gate lock switch LED |
When the rear gate is open (the power rear gate lock switch LED illuminates) |
9 - 16 V |
| (L86) No. 6 ←→ (L86) No. 13 |
Buzzer (+) |
When buzzer sounds |
Pulse |
| (L86) No. 7 |
- |
- |
- |
| (L86) No. 8 ←→ Chassis ground |
HALL RETURN |
- |
- |
| (L86) No. 9 ←→ (L86) No. 8 |
HALL2 |
- |
- |
| (L86) No. 10 ←→ (L86) No. 8 |
HALL1 |
- |
- |
| (L86) No. 11 ←→ Chassis ground |
HALL FEED |
- |
- |
| (L86) No. 12 |
- |
- |
- |
| (L86) No. 13 |
Buzzer (-) |
- |
- |
| (L86) No. 14 |
- |
- |
- |
