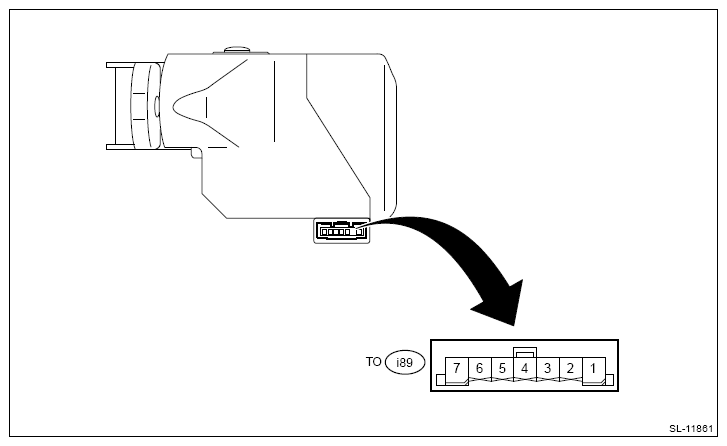

Steering Lock Control Module

Courtesy of SUBARU OF AMERICA, INC.

Terminal No.

Contents

Measuring condition

Standard

(i89) No. 1 ←→ Chassis ground

Ground

Always⁽¹⁾

Less than 1 Ω

(i89) No. 2

(i89) No. 3 ←→ Chassis ground

Steering lock motor drive power supply

Motor not operating → Motor operating

9.5 V or more → 1 V or less

(i89) No. 4 ←→ Chassis ground

Unlock position output

Lock → Unlock

9.5 V or more → 1 V or less

(i89) No. 5

LIN communication

ACC ON, IGN ON or power OFF, and open/close the door

Pulse generation

(i89) No. 6 ←→ Chassis ground

Ignition power supply

Ignition switch ON⁽¹⁾

9.5 V or more

(i89) No. 7 ←→ Chassis ground

Battery power supply

Always⁽¹⁾

9.5 V or more

⁽¹⁾	Executed with the steering lock control module connector disconnected.
