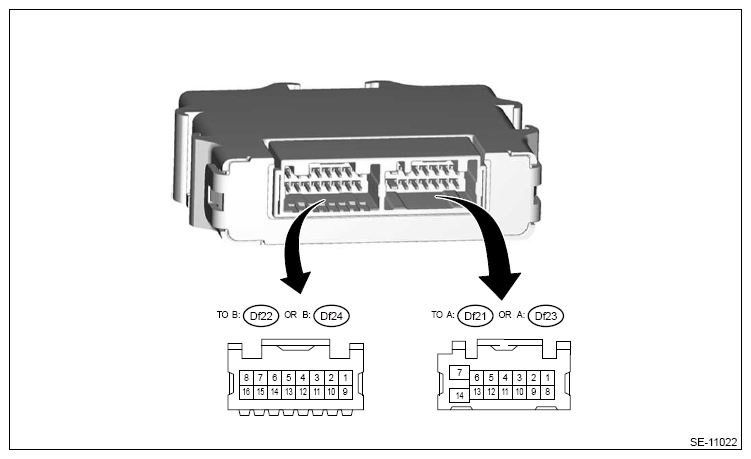

Outer Mirror Control Module
| Terminal No. | Contents | Measuring condition | Standard | Note | |
|---|---|---|---|---|---|
| Door mirror (driver's seat) | Door mirror (passenger's seat) | ||||
| (Df21) or (Df23) No. 1 ←→ Chassis ground |
Memory sensor power supply | Memory sensor power supply | Always | 5.0 V | - |
| (Df21) or (Df23) No. 2 ←→ Chassis ground |
Memory sensor input (horizontal) |
Memory sensor input (horizontal) |
Always | 0 - 5.0 V | - |
| (Df21) or (Df23) No. 3 ←→ Chassis ground |
Memory sensor input (vertical) | Memory sensor input (vertical) | Always | 0 - 5.0 V | - |
| (Df21) or (Df23) No. 4 ←→ Chassis ground |
SET SW input | - | Switch ON | 1.6 V or less | - |
| Switch OFF | 10 kΩ or more | - | |||
| (Df21) or (Df23) No. 5 ←→ Chassis ground |
Memory 1 SW input | - | Switch ON | 1.6 V or less | - |
| Switch OFF | 10 kΩ or more | - | |||
| (Df21) or (Df23) No. 6 ←→ Chassis ground |
Memory 2 SW input | - | Switch ON | 1.6 V or less | - |
| Switch OFF | 10 kΩ or more | - | |||
| (Df21) or (Df23) No. 7 ←→ Chassis ground |
GND | GND | Always | 1 Ω or less | - |
| (Df21) or (Df23) No. 8 ←→ Chassis ground |
Remote control mirror SW MCL input (L side) | - | When the mirror surface is operated (up) | 3.7 V or more | Common to both the right and left mirror operation |
| When the mirror surface is operated (down) | 1.6 V or less | Common to both the right and left mirror operation | |||
| When the mirror surface is operated (right) | 3.7 V or more | Common to both the right and left mirror operation | |||
| When the mirror surface is operated (left) | 1.6 V or less | Common to both the right and left mirror operation | |||
| (Df21) or (Df23) No. 9 ←→ Chassis ground |
Remote control mirror SW MAR input (R side) | - | When the mirror surface is operated (up) | 10 kΩ or more | Only when the right mirror is operated |
| When the mirror surface is operated (down) | 10 kΩ or more | Only when the right mirror is operated | |||
| When the mirror surface is operated (right) | 1.6 V or less | Only when the right mirror is operated | |||
| When the mirror surface is operated (left) | 3.7 V or more | Only when the right mirror is operated | |||
| (Df21) or (Df23) No. 10 ←→ Chassis ground |
Remote control mirror SW MBR input (R side) | - | When the mirror surface is operated (up) | 1.6 V or less | Only when the right mirror is operated |
| When the mirror surface is operated (down) | 3.7 V or more | Only when the right mirror is operated | |||
| When the mirror surface is operated (right) | 10 kΩ or more | Only when the right mirror is operated | |||
| When the mirror surface is operated (left) | 10 kΩ or more | Only when the right mirror is operated | |||
| (Df21) or (Df23) No. 11 ←→ Chassis ground |
Remote control mirror SW MAL input (L side) | - | When the mirror surface is operated (up) | 10 kΩ or more | Only when the left mirror is operated |
| When the mirror surface is operated (down) | 10 kΩ or more | Only when the left mirror is operated | |||
| When the mirror surface is operated (right) | 1.6 V or less | Only when the left mirror is operated | |||
| When the mirror surface is operated (left) | 3.7 V or more | Only when the left mirror is operated | |||
| (Df21) or (Df23) No. 12 ←→ Chassis ground |
Remote control mirror SW MBL input (L side) | - | When the mirror surface is operated (up) | 1.6 V or less | Only when the left mirror is operated |
| When the mirror surface is operated (down) | 3.7 V or more | Only when the left mirror is operated | |||
| When the mirror surface is operated (right) | 10 kΩ or more | Only when the left mirror is operated | |||
| When the mirror surface is operated (left) | 10 kΩ or more | Only when the left mirror is operated | |||
| (Df21) or (Df23) No. 13 ←→ Chassis ground |
Memory sensor GND | Memory sensor GND | Always | 1 Ω or less | - |
| (Df21) or (Df23) No. 14 ←→ Chassis ground |
ECM power supply | ECM power supply | Always | 9.0 - 16 V | - |
| (Df22) or (Df24) No. 1 ←→ Chassis ground |
Electric retraction SW input (OPR) | - | During the extension operation by the electric retraction system | 3.3 V or more | - |
| During the retracting operation by the electric retraction system | 10 kΩ or more | - | |||
| (Df22) or (Df24) No. 2 ←→ Chassis ground |
Remote control mirror SW power supply | - | When the electric retraction system and mirror surface are operated | 9.0 - 16 V | - |
| (Df22) or (Df24) No. 3 | CAN communication Hi | CAN communication Hi | - | Cannot be measured | - |
| (Df22) or (Df24) No. 4 | CAN communication Low | CAN communication Low | - | Cannot be measured | - |
| (Df22) or (Df24) No. 5 ←→ Chassis ground |
Output for courtesy light | Output for courtesy light | When door is open | (+B voltage) -0.8 V or more | - |
| (Df22) or (Df24) No. 6 ←→ Chassis ground |
Mirror surface motor output (vertical) | Mirror surface motor output (vertical) | When the mirror surface is operated (up) | 1.0 V or less | - |
| When the mirror surface is operated (down) | (+B voltage) -0.6 V or more | - | |||
| When the mirror surface is operated (right) | 10 kΩ or more | - | |||
| When the mirror surface is operated (left) | 10 kΩ or more | - | |||
| (Df22) or (Df24) No. 7 ←→ Chassis ground |
Mirror surface motor output (horizontal) | Mirror surface motor output (horizontal) | When the mirror surface is operated (up) | 10 kΩ or more | - |
| When the mirror surface is operated (down) | 10 kΩ or more | - | |||
| When the mirror surface is operated (right) | 1.0 V or less | - | |||
| When the mirror surface is operated (left) | (+B voltage) -0.6 V or more | - | |||
| (Df22) or (Df24) No. 8 ←→ Chassis ground |
Mirror surface motor output (common) | Mirror surface motor output (common) | When the mirror surface is operated (up) | (+B voltage) -0.6 V or more | - |
| When the mirror surface is operated (down) | 1.0 V or less | - | |||
| When the mirror surface is operated (right) | (+B voltage) -0.6 V or more | - | |||
| When the mirror surface is operated (left) | 1.0 V or less | - | |||
| (Df22) or (Df24) No. 9 ←→ Chassis ground |
Remote control mirror SW GND | - | Always | 10 kΩ or more | - |
| (Df22) or (Df24) No. 10 ←→ Chassis ground |
Electric retraction SW input (CLR) | - | During the extension operation by the electric retraction system | 10 kΩ or more | - |
| During the retracting operation by the electric retraction system | 3.3 V or more | - | |||
| (Df22) or (Df24) No. 11 ←→ Chassis ground |
IGN SW input | IGN SW input | IG ON | 9.0 - 16 V | - |
| (Df22) or (Df24) No. 12 ←→ Chassis ground |
ACC SW input | ACC SW input | ACC ON | 9.0 - 16 V | - |
| (Df22) or (Df24) No. 13 ←→ Chassis ground |
Electric retraction SW illumination output | - | Night illumination ON | (+B voltage) -0.3 V or more | - |
| (Df22) or (Df24) No. 14 ←→ Chassis ground |
Heater output | Heater output | Defogger ON | (+B voltage) -0.8 V or more | - |
| (Df22) or (Df24) No. 15 ←→ Chassis ground |
Electric retraction motor output (-) | Electric retraction motor output (-) | During the extension operation by the electric retraction system | (+B voltage) -1.1 V or more | - |
| During the retracting operation by the electric retraction system | 0.9 V or less | - | |||
| (Df22) or (Df24) No. 16 ←→ Chassis ground |
Electric retraction motor output (+) | Electric retraction motor output (+) | During the extension operation by the electric retraction system | 0.9 V or less | - |
| During the retracting operation by the electric retraction system | (+B voltage) -1.1 V or more | - | |||
