Outback Model

CAUTION:

Before handling the airbag system components, refer to "CAUTION" of "General Description" in "AIRBAG SYSTEM". Ref. to AIRBAG SYSTEM>GENERAL DESCRIPTION>CAUTION .
Side impact sensor (under the rear center seat) for the airbag system is located under the front center of the rear seat cushion. Be careful not to apply strong impact to the sensor when working with the rear seat cushion removed.

Install the lever assembly rear backrest.

Courtesy of SUBARU OF AMERICA, INC.

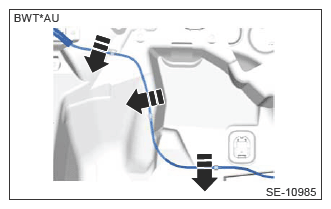

NOTE: Install the backrest lever assembly cable in the arrow direction and lock the cable clamp.
Install the trim panel assembly apron. Ref. to OUTBACK MODEL .
Install the pad rear side. Ref. to SEATS>REAR SEAT>INSTALLATION .
Connect the ground terminal to battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
