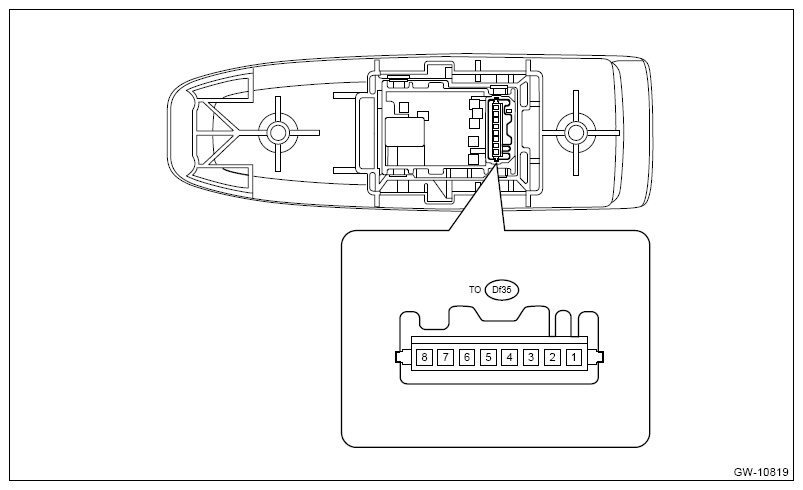

Front Power Window Sub-Switch
| Terminal No. | Contents | Measuring condition | Standard |
|---|---|---|---|
| (Df35) No. 1 | Power window switch AUTO | - | - |
| (Df35) No. 2 ←→ Chassis ground | Power window switch GND | Always | Less than 1 Ω |
| (Df35) No. 3 | - | - | - |
| (Df35) No. 4 | - | - | - |
| (Df35) No. 5 | Power window switch DOWN | - | - |
| (Df35) No. 6 | Power window switch UP | - | - |
| (Df35) No. 7 | Power window switch LED | - | - |
| (Df35) No. 8 | - | - | - |
