Front Impact Sensor
CAUTION:
Do not reuse mounting bolts.

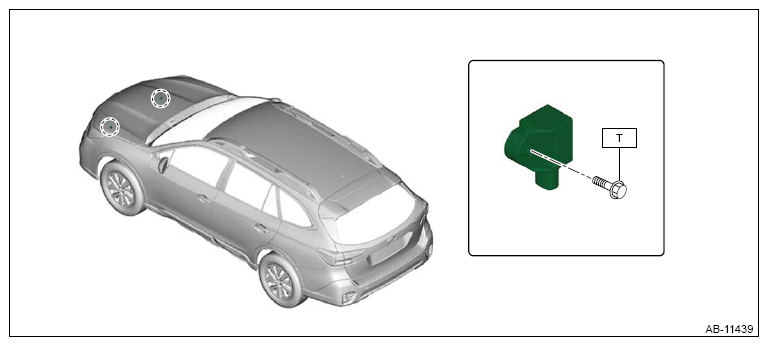

Fig 1: Front Impact Sensor Mounting Bolt
Courtesy of SUBARU OF AMERICA, INC.
Tightening torque: N.m (kgf-m, ft-lb)
T: 13 (1.3, 9.6)
Courtesy of SUBARU OF AMERICA, INC.
