Transmission Control Module

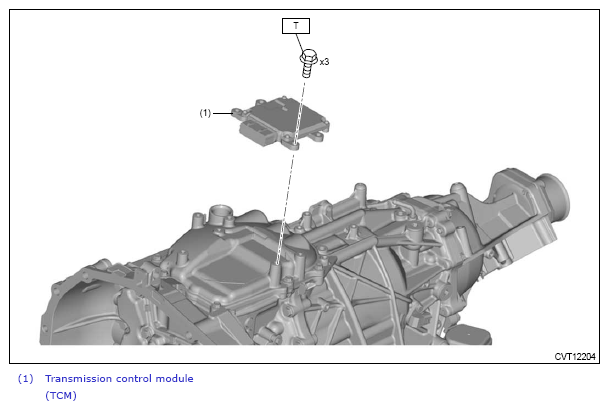

Fig 1: Transmission Control Module Components
Courtesy of SUBARU OF AMERICA, INC.
Tightening torque: N.m (kgf-m, ft-lb)
T: 7 (0.7, 5.2)
Courtesy of SUBARU OF AMERICA, INC.
