Body Integrated Unit: Installation

CAUTION:

When the control module related to immobilizer has been replaced, be sure to perform the registration of immobilizer system.
For detailed operation procedure, refer to "Type G" described in "REGISTRATION MANUAL FOR IMMOBILIZER". (Models without keyless access with push button start system except for CO and C5 models)
Before handling the airbag system components, refer to "CAUTION" of "General Description" in "AIRBAG SYSTEM". Ref. to AIRBAG SYSTEM>GENERAL DESCRIPTION>CAUTION .

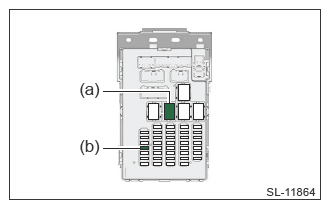

When replacing the body integrated unit with a new part, install the relay (a) and the fuse (b) to the relay holder.

Courtesy of SUBARU OF AMERICA, INC.
Install the body integrated unit (fuse & relay box).
Tightening torque:

7.5 N.m (0.8 kgf-m, 5.5 ft-lb)
Install the cover LWR driver. Ref. to EXTERIOR/INTERIOR TRIM>INSTRUMENT PANEL LOWER COVER>INSTALLATION .
Connect the ground terminal to battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
