Body Integrated Unit: Removal

CAUTION:

When the control module related to immobilizer has been replaced, be sure to perform the registration of immobilizer system.
For detailed operation procedure, refer to "Type G" described in "REGISTRATION MANUAL FOR IMMOBILIZER". (Models without keyless access with push button start system except for CO and C5 models)
Before handling the airbag system components, refer to "CAUTION" of "General Description" in "AIRBAG SYSTEM". Ref. to AIRBAG SYSTEM>GENERAL DESCRIPTION>CAUTION .

Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
Remove the cover LWR driver. Ref. to EXTERIOR/INTERIOR TRIM>INSTRUMENT PANEL LOWER COVER>REMOVAL .

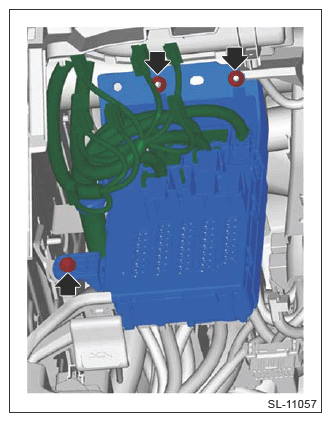

Remove the body integrated unit (fuse & relay box).
1. Disconnect connectors.
2. Remove the bolts and nuts, and remove the body integrated unit (fuse & relay box).
