Power Rear Gate Inner Switch: Inspection

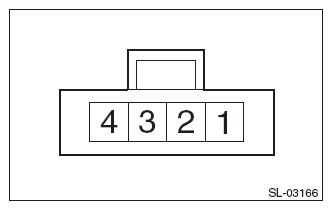

- Measure the resistance between connector terminals.
- Power rear gate inner switch
Terminal No. Inspection conditions Standard 4 - 1 Switch OFF 1 MΩ or more Switch ON Less than 1 Ω - Power rear gate lock switch
Terminal No. Inspection conditions Standard 4 - 1 Switch OFF 1 MΩ or more Switch ON Less than 1 Ω - Apply battery voltage between the connector terminals to check lighting condition of illumination inside the switch.CAUTION: When applying battery voltage, do not mix up the positive (+) side and the negative (-) side.CAUTION: Incorrect polarity connection may cause LED damage inside the switch.
Terminal No. Inspection conditions Specification 2 (+) - 3 (-) Apply battery voltage. Light On - Replace the power rear gate inner switch or the power rear gate lock switch, if the inspection result is not within the standard value.
