Power Rear Gate Touch Sensor: Inspection
- Visually check the power rear gate touch sensor for cracks or damages, and replace as necessary.

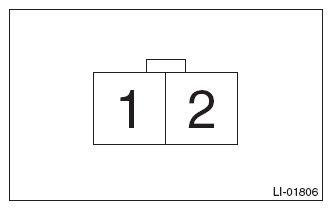

- Measure the resistance between connector terminals.
Terminal No. Inspection conditions Standard 1 - 2 ON (with the sensor pressed) Less than 2 kΩ OFF (always) Approx. 10 kΩ - Replace the power rear gate touch sensor if the inspection result is not within the standard value.
