Components With Torque Specifications

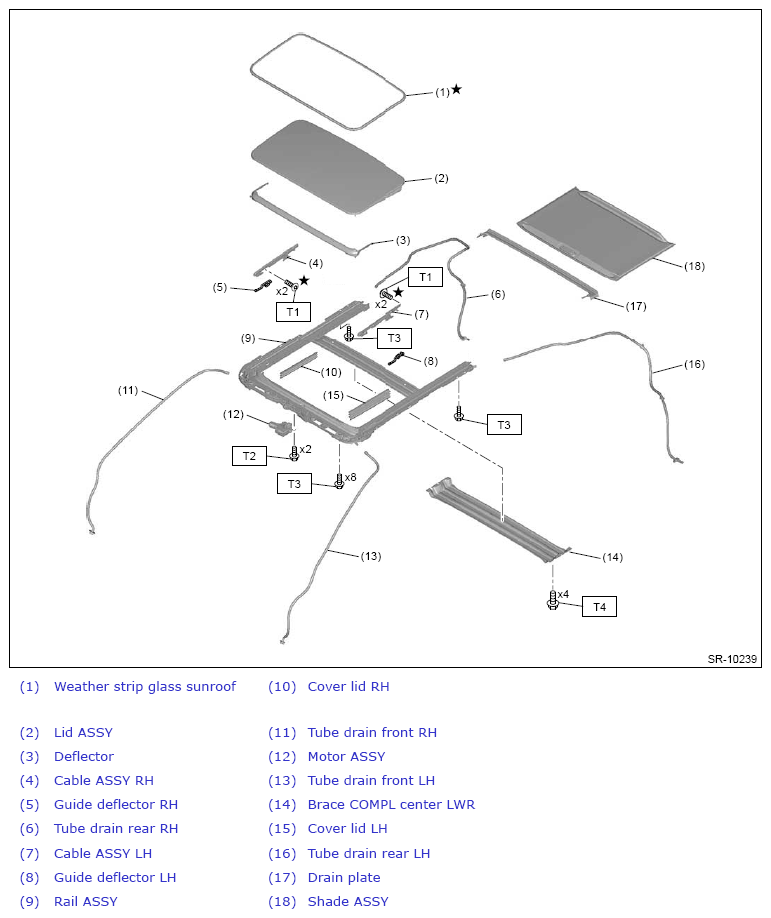

Fig 1: Sunroof Components

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 4 (0.4, 3)

T2: 5.4 (0.6, 4)

T3: 6 (0.6, 4.4)

T4: 12.7 (1.3, 9.4)
